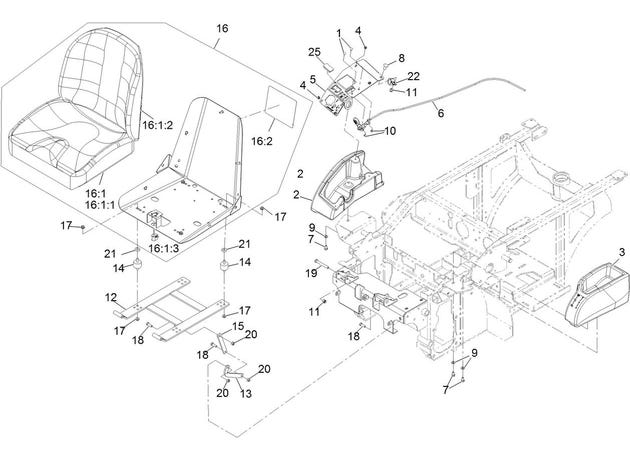

eXmark MN NV730EKC48 Seat and Consoles Assembly

1

1-807513

Bolt-Carriage #10-24 x 1/2

$2.98

2

116-9430

CONSOLE-RH

$171.99

3

126-4342

CONSOLE, LH GREY

$171.99

4

109-2661

Screw-PPH #10-24 x 1/2

$1.55

5

116-9373

CONTROL PANEL ASM

$128.99

6

109-4641

CABLE-THROTTLE

$39.59

7

322-2

Screw-HH 5/16-18 x 5/8

$2.98

8

3231-27

Bolt-Carriage 3/8-16 x 7/8

$4.91

9

3256-23

Washer-5/16 SAE

$2.59

10

3296-2

Nut-Nyloc #10-24

$2.46

11

3296-39

Nut-Nyloc 3/8-16

$2.98

12

103-4362-03

FRAME-SEAT

$158.99

13

116-9554

LINK-SEAT STOP

$17.59

14

103-5496

MOUNT-VIBRATION, RUBBER

$24.19

15

103-8563

LINK-SEAT

$16.49

16

126-9643

ASM-SEAT W/DECAL

$469.99

16:1:1

116-4848

ASM-SEAT BOTTOM CUSHION

$277.99

16:1:2

116-3738

CUSHION,SEAT BACK

$293.99

16:1:3

82-2190

Switch

$15.39

16:2

116-1175

DECAL-SERVICE AID

$20.89

17

32128-20

Nut-Whizlock 5/16-18

$1.39

18

322-5

Screw-HH 5/16-18 x 1

$0.74

19

323-14

Screw-HH 3/8-16 x 3

$4.31

20

3296-29

Nut-Nyloc 5/16-18

$2.72

21

5-0652

Spacer

$8.51

22

1-643312

Clip-Loom

$7.07

25

99-7420

PLUG-HOLE

$8.51
