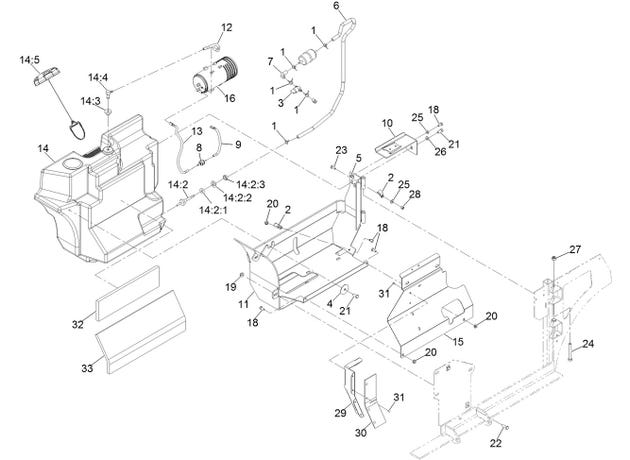

eXmark MN NV730EKC48 Fuel Assembly

1

1-303077

Clamp-Fuel Line

$1.55

2

1-513762

Clip-Loom 1/2

$8.51

3

1-603770

Valve-Fuel

$9.11

4

1-653036

Washer

$5.75

5

107069

Nut-Retainer-Panel 1/4-20

$2.98

6

116-5366

FUEL LINE ASM

$51.69

7

109-0304

HOSE-FUEL

$2.59

8

133-8499

VALVE-CHECK, VACUUM

$14.29

9

116-2619

HOSE-VENT, FORMED

$8.99

10

116-2847-03

CANISTER BRACKET ASM

$56.09

11

116-2848-03

TANK FRAME ASM

$292.99

12

116-2966

HOSE-VENT, FORMED

$3.47

13

116-2967

HOSE-VENT, FORMED

$9.35

14

116-8365

FUEL TANK ASM

$522.99

14:2

103-6057

FITTING-FUEL, BULKHEAD

$50.59

14:2:1

103-2784

O-Ring

$14.29

14:2:2

3256-26

Washer-1/2 SAE

$0.59

14:2:3

3220-5

Nut-Jam 1/2-20

$1.94

14:3

46-6560

BUSHING

$6.47

14:4

104-5228

FITTING-ELBOW, 90 DEG

$17.59

14:5

137-4119

CAP-FUEL, RATCHETING

$27.49

15

116-7928-03

PANEL-TANK SHIELD

$65.99

16

117-1221

CANISTER-CARBON, 800CC

$72.59

18

321-3

Screw-HH 1/4-20 x 5/8

$1.55

19

32128-20

Nut-Whizlock 5/16-18

$1.39

20

32128-33

Nut-Whizlock 1/4-20

$0.97

21

322-3

Screw-HH 5/16-18 x 3/4

$1.11

22

322-5

Screw-HH 5/16-18 x 1

$0.74

23

3229-1

Bolt-Carriage 1/4-20 x 3/4

$4.07

24

323-14

Screw-HH 3/8-16 x 3

$4.31

25

3256-22

Washer-1/4 SAE

$0.59

26

3256-23

Washer-5/16 SAE

$2.59

27

3296-39

Nut-Nyloc 3/8-16

$2.98

28

3296-42

Nut-Nyloc 1/4-20

$0.59

29

103-7095-03

Deflector-Air

$71.49

30

103-9658

Flap-Rubber

$24.19

31

1-803035

Rivet 3/16 x 1/4

$1.55

32

103-7825

INSULATION-FOAM PAD, FRONT

$15.39

33

103-7824

INSULATION-FOAM PAD, REAR

$31.89
