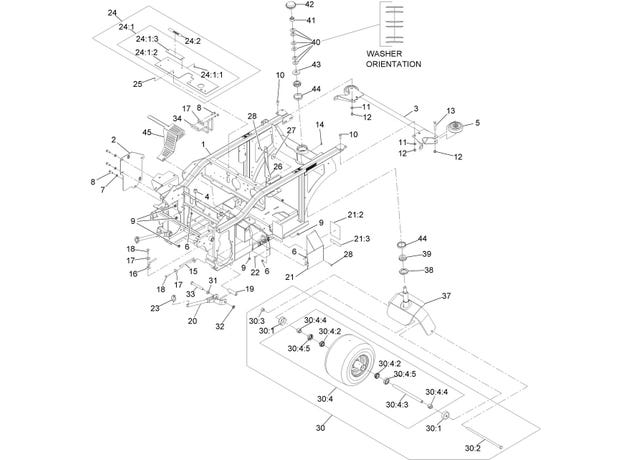

eXmark MN NVS730AKC48000 Main Frame Assembly

#
Part #
Item
Price
Qty
Add
1
116-7482
FRAME ASM
$2,069.99
2
116-7396-03
PLATE-SUPPORT
$43.99
3
109-0925-03
BUMPER-REAR
$267.99
4
109-2365
BUMPER-RUBBER
$5.75
5
103-5408
ROLLER-BUMPER
$23.09
6
32128-33
Nut-Whizlock 1/4-20
$0.97
7
3256-23
Washer-5/16 SAE
$2.59
8
322-5
Screw-HH 5/16-18 x 1
$0.74
9
32128-20
Nut-Whizlock 5/16-18
$1.39
10
323-6
Screw-HH 3/8-16 x 1
$2.98
11
3256-24
Washer-3/8 SAE
$0.83
12
3296-39
Nut-Nyloc 3/8-16
$2.98
13
3231-31
Bolt-Carriage 3/8-16 x 2 1/2
$7.91
14
1-811010
Plug
$5.75
15
103-8333
GUIDE-BELT
$12.09
16
103-8349
GUIDE-BELT
$11.99
17
1-613235
WASHER
$1.94
18
322-6
Screw-HH 5/16-18 x 1 1/4
$4.55
19
1-633060
SPACER-WHEEL, SHORT
$15.39
20
103-6596-03
ROD-PUSH
$113.99
21
130-2879
DRIVE SHIELD ASM
$80.99
21:2
116-8941
DECAL-BELT ROUTING
$7.07
22
321-3
Screw-HH 1/4-20 x 5/8
$1.55
23
103-4155
Pin-Lynch
$7.07
24:1:2
103-9476
LIFT SHIELD ASM
$93.99
24:1:3
103-9114-03
PLATE-DECAL
$7.07
24:2
98-1977
DECAL-WARNING
$9.95
25
1-803035
Rivet 3/16 x 1/4
$1.55
26
109-5874-03
BRACE-PTO
$46.19
27
1-213069
WASHER
$2.98
28
321-6
Screw-HH 1/4-20 x 1
$0.74
30
103-9494
Asm, Rear Caster Wheel W/Axle
$462.99
30:1
103-2768
Guard-Seal
$3.95
30:2
103-7738
Screw-HH 1/2-13 x 13
$24.19
30:3
3296-23
Nut-Nyloc 1/2-13
$1.25
30:4
103-5305
Asm, Wheel Tire and Brg 13x8.00-6 SP
$425.99
30:4:2
1-633585
Bearing-Cone Tapered Roller
$21.99
30:4:3
126-5362
AXLE CASTER ASM
$30.79
30:4:4
103-3051
Spacer-Nut
$9.59
30:4:5
103-0063
Seal-Double Lip
$9.95
31
3256-26
Washer-1/2 SAE
$0.59
32
3296-45
NUT-HEX
$4.55
33
325-17
Screw-HH 1/2-13 x 4
$6.83
34
135-5784
WLD-BELT GUIDE
$43.99
37
103-3351-03
FORK-REAR CASTER
$381.99
38
103-9027
SEAL-GREASE
$14.29
39
103-9028
Cone-Bearing Taper Roller
$30.79
40
1-633508
Washer-Spring Disc
$3.83
41
3296-51
Nut-Nyloc 3/4-10
$7.19
42
126-9882
CAP-GREASE
$8.87
43
3256-8
Washer
$4.19
44
103-9029
Cup-Bearing Tapered Roller
$11.99
45
116-7272-03
SHIELD-HEAT
$43.99
