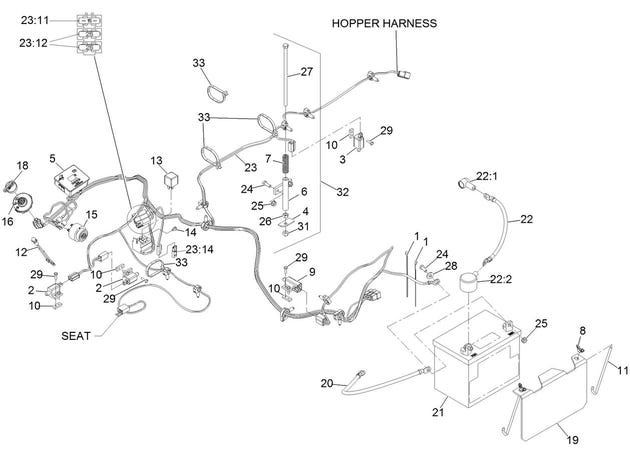

eXmark MN NVS730AKC48000 Electrical Assembly

1

1-303287

Tie-Cable 5 1/2 (Small)

$1.55

2

1-513051

Switch-N.O.

$19.79

3

1-513152

Switch-N.C.

$14.29

4

126-7505

PLATE-SWITCH

$7.43

5

116-8812

HOUR METER ASM

$122.99

6

1-522424-03

MOUNT-SPRING, SEAT

$35.19

7

1-523415

Spring

$34.09

8

1-543792

Wingnut-Nyloc 1/4-20

$7.07

9

1-633111

Switch

$21.99

10

1-633181

Plate-Tapped

$7.07

11

1-633651

BOLT-HOLDDOWN

$8.75

12

1-643267

Indicator-Red LED

$25.29

13

1-643275

Relay-12VDC 40 Amp

$24.19

14

104-2065

Screw-HWH #10-24 x 3/8

$0.83

15

103-0205

ALARM-TONE, DUAL

$69.29

16

137-4100

SWITCH-IGNITION

$28.59

18

103-2106

Key-Exmark Logo

$5.75

19

103-4161-03

HOLD DOWN-BATTERY

$40.69

20

103-8355

Cable-Ground(-)

$17.59

22

116-4730

CABLE-BATTERY, POSITIVE

$19.79

22:1

1-543393

Insulator-Solenoid

$5.75

22:2

109-2407

INSULATOR-BATTERY

$5.75

23

116-9114

HARNESS-WIRING

$323.99

23:11

109355

FUSE-BLADE, 15 AMP

$3.71

23:12

109102

FUSE-BLADE, 25 AMP

$5.75

23:14

116-0053

CAP-PLUG

$40.69

24

321-4

Screw-HH 1/4-20 x 3/4

$1.39

25

32128-33

Nut-Whizlock 1/4-20

$0.97

26

3217-6

Nut-Hex 5/16-18

$1.55

27

322-50

Screw-HH 5/16-18 x 7 1/2

$7.07

28

3256-2

Washer-1/4 Std

$0.59

29

3290-134

Screw-HH Machine 10-24 x 5/8

$0.59

31

3296-29

Nut-Nyloc 5/16-18

$2.72

32

103-8528

HOPPER SWITCH ACTUATOR ASM

$93.99

33

3290-378

Tie-Cable

$1.11
