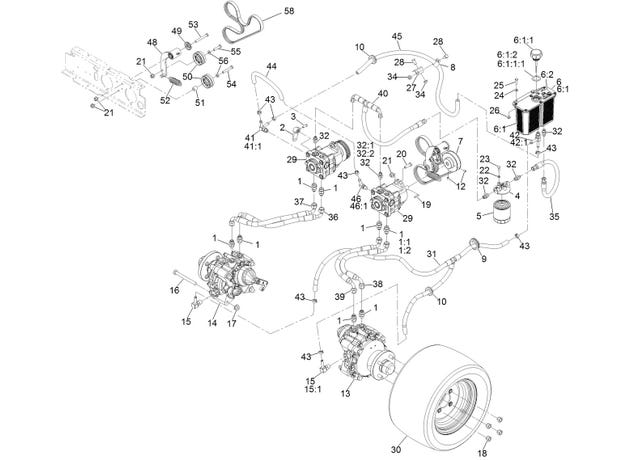

eXmark MN NVS740CKC42000 Hydraulic Assembly

1

1-603990

Adapter-Straight

$18.69

1:1

1-603920

O-Ring-SAE #8

$3.95

1:2

1-603992

O-Ring-37 Flare #8

$2.98

2

1-632208

ARM-CONTROL, PUMP

$28.59

3

120-6474

SCREW-SET, SQH 5/16-18 X 3/4

$2.98

4

104-7836

Filter-Head

$16.49

5

109-4180

FILTER-25 MICRON, BI-DIRECTIONAL

$50.59

6

116-9274

RESERVOIR ASM

$322.99

6:1:1

116-9273

RESERVOIR CAP ASM

$26.39

6:1:2

142-2792

O-RING

$1.68

6:2

115-4212

DECAL-WARNING

$11.99

7

103-4246

SHEAVE

$99.99

8

1-633396

Clip-Loom 5/8

$5.75

9

103-7706

Grommet

$5.75

10

1-543286

GROMMET

$13.19

12

1-803310

SCREW-SET

$2.98

13

116-7401

MOTOR-HYD, LH

$1,422.99

14

116-7402

MOTOR-HYD, RH

$1,422.99

15

354-134

FITTING-90

$64.89

15:1

237-79

O-RING

$6.11

16

325-19

Screw-HH 1/2-13 x 5

$9.35

17

32128-49

Nut-Whizlock 1/2-13

$2.33

18

242-50

Nut-Lug 1/2-20

$2.11

19

1-807272

Key-5mm x 5mm x 25mm

$6.35

20

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

21

32128-43

Nut-Whizlock 3/8-16

$1.68

22

1-805004

Washer-Lock 1/4 Heavy

$1.55

23

321-3

Screw-HH 1/4-20 x 5/8

$1.55

24

3256-22

Washer-1/4 SAE

$0.59

25

321-6

Screw-HH 1/4-20 x 1

$0.74

26

32128-33

Nut-Whizlock 1/4-20

$0.97

27

103-8631

BRACKET-CLAMP

$11.99

28

323-4

Screw-HH 3/8-16 x 3/4

$4.31

29

116-7836

12CC HYDRO PUMP ASM

$854.99

30

116-5634

TIRE AND WHEEL ASM

$390.99

31

116-7831

HYDRAULIC HOSE ASM

$51.69

32

103-2156

Adapter-Straight

$42.89

32:2

103-1020

O-Ring-37 Flare #6

$1.55

34

3290-357

Nut-Whizlock 3/8-16

$1.11

35

126-4400

HYDRAULIC HOSE ASM

$37.39

36

116-7827

HYDRAULIC HOSE ASM

$80.29

37

116-7828

HYDRAULIC HOSE ASM

$80.29

38

116-7829

HYDRAULIC HOSE ASM

$80.29

39

116-7830

HYDRAULIC HOSE ASM

$80.29

40

109-1264

HYDRAULIC HOSE ASM

$86.99

41

103-5469

Adapter-Tee Special

$82.99

42

103-1828

Adapter-Running Tee

$47.29

43

103-1988

Clamp-Hose 11/16

$1.55

44

103-5452

HOSE-HYD

$10.79

45

103-5477

HOSE-HYD

$34.09

46

100-4887

FITTING-ELBOW, 90

$27.49

46:1

237-42

O-RING

$3.24

48

103-7349

SHORT IDLER ASM

$170.99

49

103-2916

Guard-Top

$2.98

50

116-6361

PULLEY

$60.49

51

106-5574

Spacer-Mounting, Steering

$13.19

52

1-653331

SPRING-IDLER

$13.19

53

323-20

Screw-HH 3/8-16 x 3-1/4

$3.95

54

323-12

Screw-HH 3/8-16 x 2 1/2

$2.98

55

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

56

3256-24

Washer-3/8 SAE

$0.83

58

103-4244-SL

BELT-V WITH SLEEVE

$49.49
