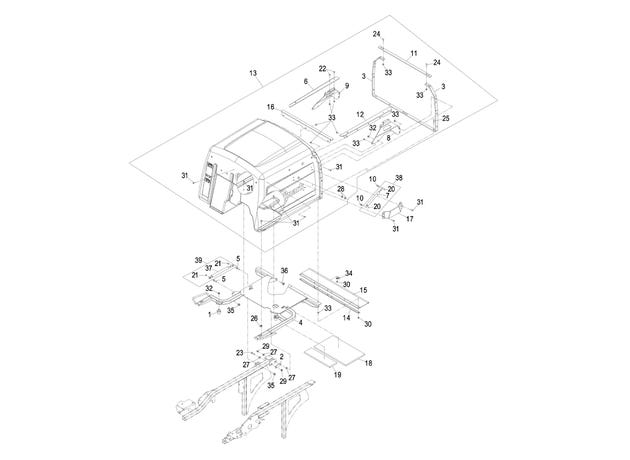

eXmark MN NAV20KC Hopper Group

1

1-543963

BUMPER-RUBBER

$24.19

2

1-633068

ARM-LIFT, DECK

$12.09

3

103-5045-03

REINFORCEMENT-HOPPER

$76.99

4

109-4086

HOPPER FRAME ASM

$1,031.99

5

103-5426

STUD-BALL

$15.39

6

103-5736-03

ANGLE-SCREEN TRACK, RH

$41.79

7

103-5746

SHOCK-GAS TENSION

$141.99

8

103-5749-03

BRACE-DOOR PIVOT, LH

$67.09

9

103-5751-03

BRACE-DOOR PIVOT, RH

$67.09

10

103-5752

Stud-Ball 10mm

$8.51

11

103-5772-03

BRACKET-FRAME CONNECT

$59.39

12

103-5774-03

ANGLE-SCREEN TRACK, LH

$41.79

13

103-9457

Asm, Hopper

$2,723.99

14

103-6022-03

CHANNEL-FRAME, HOPPER

$24.19

15

103-6025

DEFLECTOR-GRASS

$65.99

16

103-7035-03

CHANNEL-SCREEN, FRONT

$30.79

17

109-4019

PLATE-GUARD

$49.49

18

103-7824

INSULATION-FOAM PAD, REAR

$31.89

19

103-7825

INSULATION-FOAM PAD, FRONT

$15.39

20

103-8324

Clip-Retainer-10mm

$1.81

21

103-8325

CLIP-RETAINER

$2.98

22

321-2

Screw-HH 1/4-20 x 1/2

$3.71

23

323-6

Screw-HH 3/8-16 x 1

$2.98

24

3229-2

Bolt-Carriage 1/4-20 x 1

$3.47

25

3229-4

Bolt-Carriage 1/4-20 x 1 1/2

$1.25

26

107069

Nut-Retainer-Panel 1/4-20

$2.98

27

3256-24

Washer-3/8 SAE

$0.83

28

3256-3

Washer-5/16 Std

$0.74

29

3296-39

Nut-Nyloc 3/8-16

$2.98

30

3296-42

Nut-Nyloc 1/4-20

$0.59

31

32105-32

Screw-Truss HD 1/4-20 x 1

$1.68

32

32128-20

Nut-Whizlock 5/16-18

$1.39

33

32128-33

Nut-Whizlock 1/4-20

$0.97

34

1-513762

Clip-Loom 1/2

$8.51

35

33005-00

NUT-HF

$2.46

36

614672

Screw-Shoulder 3/8-16 x 1.295

$3.11

37

103-5425

SHOCK-COMPRESSION, GAS

$159.99

38

109-0715

DAMPER KIT

$82.49

39

109-0716

DAMPER KIT

$131.99
