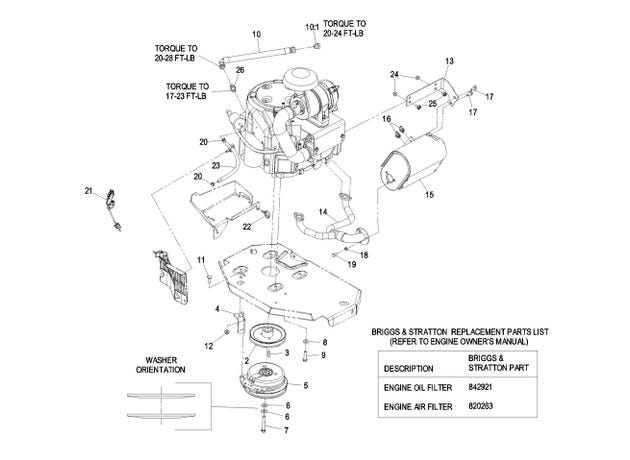

eXmark MN LZAS20BV484 Engine Group - 20HP Briggs & Stratton

2

116-0993

Sheave, W/Hub

$73.45

3

1-807259

KEY

$2.46

4

109-8138-01

ANCHOR-CLUTCH

$50.59

5

109-9155

Clutch

$480.99

6

1-603610

Washer-Spring Disc 7/16

$5.75

7

116-1066

Screw-HH 7/16-20 x 2 3/4 W/Loctite

$7.07

8

98-5975

Washer-Spring Disc 3/8

$3.71

9

32144-102

Screw-HWH 3/8-16 X 1 1/2 Taptite

$3.83

10

116-5330

ASM,HOSE OIL DRAIN W/PLUG

$45.09

10:1

109-1012

Plug

$8.51

11

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

12

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

13

116-1005

Bracket, Muffler

product not available CALL FOR AVAILABILITY

$0.01

14

116-1004

Manifold, Exhaust

product not available CALL FOR AVAILABILITY

$0.01

15

109-9280

MUFFLER-ENGINE

$236.99

16

94-2413

NUT-U

$2.98

17

3234-5

SCREW-HHF

$1.39

18

3253-4

Washer-Lock 5/16

$0.97

19

322-2

Screw-HH 5/16-18 x 5/8

$2.98

20

2412-98

CLAMP-HOSE

$1.81

21

116-1020

Asm, Design Harness

product not available CALL FOR AVAILABILITY

$1.00

22

105-1853

CLAMP-HOSE

$5.75

23

109-0293

Hose-Fuel Line 8 1/2"

$7.07

24

32128-20

Nut-Whizlock 5/16-18

$1.39

25

3234-28

Screw-HH FLG 5/16-18 x 1/2

$1.55

26

116-1455

FITTING-STRAIGHT

$7.55
