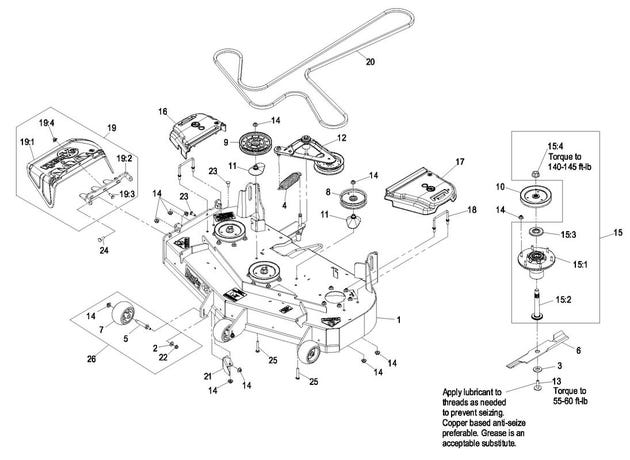

eXmark MN LZA27KC604 48" Deck Group

1

116-1978

ASM,484 DECK WITH DECALS

product not available CALL FOR AVAILABILITY

$0.01

2

98-5975

Washer-Spring Disc 3/8

$3.47

3

109-7429

Washer-Blade Drive

$5.39

4

116-0133

EXTENSION-SPRING

product not available CALL FOR AVAILABILITY

$0.01

5

99-2842

SPACER

$6.46

6

103-6401

BLADE-NOTCHED

product not available CALL FOR AVAILABILITY

$0.00

7

1-603299

ROLLER-SCALP, ANTI

$21.99

8

1-613098

PULLEY-IDLER

$45.64

9

1-633109

Idler-Flat

$30.42

10

116-0674

SHEAVE,BLADE DRIVE 5.90

$74.79

11

109-2872

SPACER-PULLEY

$21.99

12

109-2883

ASM,DECK IDLER

product not available CALL FOR AVAILABILITY

$0.01

13

116-0005

BOLT-BLADE, SEM

$8.03

15

116-1384

Asm, Cutter Housing Complete

product not available CALL FOR AVAILABILITY

$0.01

15:1

116-0924

Asm, Cutter Housing

$163.99

15:2

116-0381

Spindle, Hex Pilot 5.5" Deck

$34.58

15:3

116-1286

GUARD,BEARING TOP .989

$5.63

15:4

104-0753

Nut-Hex 3/4-16 Flg Special

$4.67

16

109-6935

COVER-BELT, RH

$37.39

17

109-6936

COVER-BELT, LH

$37.39

18

109-6982

WIREFORM-COVER

$11.99

19

109-7188

ASM,DISCHARGE CHUTE

$91.99

19:1

109-2738

CHUTE,DISCHARGE

$71.49

19:2

109-8675-01

BRACKET,DISCHARGE CHUTE

$49.49

19:4

109-6658

Nut-Nyloc 3/8-16 Flg

$1.42

20

116-1965

BELT,V-B X 175.75

product not available CALL FOR AVAILABILITY

$0.01

21

109-9010-01

BAFFLE,DISCHARGE

product not available CALL FOR AVAILABILITY

$0.01

22

3290-357

Nut-Whizlock 3/8-16

$1.11

23

3231-22

Bolt-Carriage 3/8-16 x 1

$3.47

24

3231-28

Bolt-Carriage 3/8-16 x 1 1/4

$4.55

25

3231-44

Bolt-Carriage 3/8-16 x 2 1/2

$2.98

26

103-4051

KIT,ANTI-SCALP ROLLER

$28.66

27

116-1967

Asm, Complete Deck

product not available CALL FOR AVAILABILITY

$1.00



103-6396

Blade, Extreme (48")

product not available CALL FOR AVAILABILITY

$0.01



103-6381

Blade, Solid

product not available CALL FOR AVAILABILITY

$0.01



103-6386

Blade, Low Lift

product not available CALL FOR AVAILABILITY

$0.01



103-6391

Blade, Mulching

$12.65
