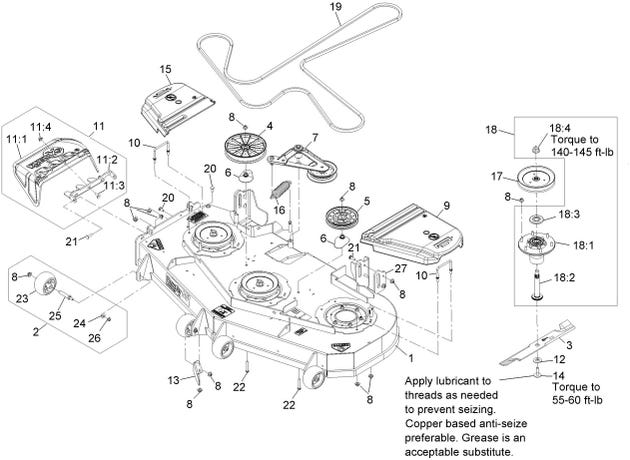

60" Deck Group

#
Part #
Item
Price
Qty
Add
1
116-8432
DECK ASM, W/DECALS 604
$2,723.99
2
116-9981
KIT, ANTI-SCALP ROLLER
$50.59
3
103-6403-S
SPK, BLADE NOTCHED 20.5 (.94 HOLE)
$30.79
4
109-0996
PULLEY,IDLER 8"FLAT
$68.19
5
126-7685
IDLER-PULLEY
$59.94
6
109-2872
SPACER-PULLEY
$21.99
7
116-3755
DECK IDLER ASM
$221.99
9
109-6938
COVER-BELT, LH
$84.99
10
109-6982
WIREFORM-COVER
$11.99
11
109-7188
ASM,DISCHARGE CHUTE
$91.99
11:1
109-2738
CHUTE,DISCHARGE
$71.49
11:2
109-8675-01
BRACKET,DISCHARGE CHUTE
$49.49
11:4
109-6658
Nut-Nyloc 3/8-16 Flg
$1.42
12
109-7429
Washer-Blade Drive
$5.39
13
109-9915-01
BAFFLE,DISCHARGE 52/60
$32.99
14
116-0005
BOLT-BLADE, SEM
$8.03
15
116-0094
COVER-BELT, RH
$75.99
16
116-6317
SPRING-EXTENSION
$27.49
17
116-0676
SHEAVE,BLADE DRIVE 7.25
$67.09
18
116-4915
KIT-LZA SPINDLE/HSG
$230.99
18:1
116-0924
Asm, Cutter Housing
$163.99
18:2
116-0381
Spindle, Hex Pilot 5.5" Deck
$34.58
18:3
116-1286
GUARD,BEARING TOP .989
$5.63
18:4
104-0753
Nut-Hex 3/4-16 Flg Special
$4.67
19
109-8073
BELT,V-5V-198.75
$148.99
20
3231-22
Bolt-Carriage 3/8-16 x 1
$3.47
21
3231-28
Bolt-Carriage 3/8-16 x 1 1/4
$4.55
22
3231-44
Bolt-Carriage 3/8-16 x 2 1/2
$2.98
23
1-603299
ROLLER-SCALP, ANTI
$21.99
24
98-5975
Washer-Spring Disc 3/8
$3.47
25
126-2928
KIT, ANTI-SCALP ROLLER AXLE
$26.39
26
3290-357
Nut-Whizlock 3/8-16
$1.11
27
116-8530-01
PLATE-REINF, PUSH TOWER
$19.79
28
116-3217
Asm, Complete Deck

product not available Product is currently not available

$1.00

116-5174-S
SPK,BLADE-EXTREME 2, 20.50"
$29.69

103-6383-S
SPK, BLADE SOLID 20.5 (.94 HOLE)
$32.99

103-6388-S
SPK, BLADE LOW LIFT 20.5 (.94 HOLE)
$36.29

103-6393-S
SPK, BLADE MULCH 20.5 (.94 HOLE)
$29.69
