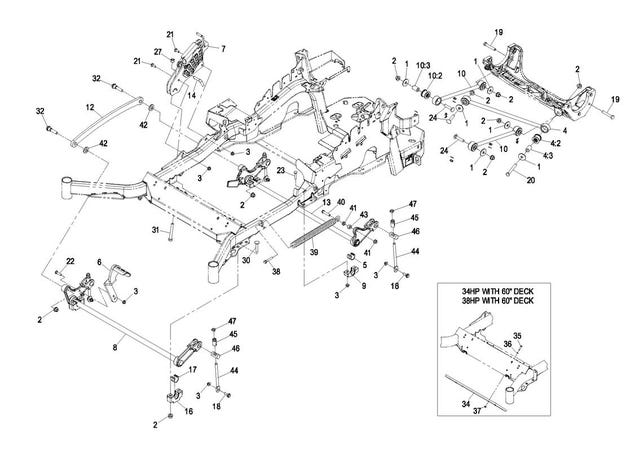

eXmark MN LZZ38KC606 Deck Support Group

1

86-1990

Washer

$4.43

2

99-5107

Nut-Lock 1/2-13

$2.20

3

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

4

109-5013

PANHARD ROD ASM

$131.99

5

109-7173

BEARING-CROSS SHAFT, REAR

$5.75

6

116-1919-01

LEVER-FOOT

$91.99

7

109-7438

HOC ASM

$253.99

8

126-2477-03

DECKLIFT-FRONT

$201.99

9

132-4719

BEARING SUPPORT KIT

$45.09

10

109-7952

DECK STRUT ASM

$134.99

10:2

109-5009

BUSHING-SUSPENSION, RUBBER

$5.75

10:3

109-5010

SPACER

$13.19

12

116-0797-03

LINK-LIFT, DECK

$126.99

13

116-2645-03

LIFT-DECK, REAR

$363.99

14

109-8757

PIN-HOC

$9.95

16

109-9409

SUPPORT-BEARING, CROSS SHAFT (FRONT)

$15.39

17

109-9410

BEARING-CROSS SHAFT, FRONT

$5.75

18

109-9840

Screw-Hex Flange 3/8-16 x .80

$5.75

19

325-12

Screw-HH 1/2-13 x 3

$6.83

20

325-17

Screw-HH 1/2-13 x 4

$6.83

21

3231-2

Bolt-Carriage 3/8-16 x 1

$2.20

22

3231-4

Bolt-Carriage 3/8-16 x 1 1/2

$4.31

23

3231-5

Bolt-Carriage 3/8-16 x 1 3/4

$1.81

24

3233-34

Bolt-Carriage 1/2-13 x 2 1/2

$10.79

27

3296-23

Nut-Nyloc 1/2-13

$1.25

30

116-1700

Bolt-Carriage 1/2-13 x 2 1/2 spl neck

$5.75

31

116-0559

Bolt-HH 1/2-13 x 4 tap

$7.07

32

116-2022

Screw-Hex Flange 1/2-13 x 1.90

$9.95

34

116-0827-01

WEIGHT,TOE BOARD

$251.99

35

321-8

Screw-HH 1/4-20 x 1 1/4

$4.43

36

3256-22

Washer-1/4 SAE

$0.59

37

104-7201

Nut-Nyloc 1/4-20 Flg

$1.68

38

92-7674

Screw-SHCS 3/8-16 x 2.212

$3.11

39

116-0000

SPRING-EXTENSION

$126.99

40

109-9065

Screw-HH 7/16-14 x 2

$3.71

41

32128-37

Nut-Whizlock 7/16-14

$4.67

42

3256-28

Washer-3/4 SAE

$3.95

43

116-2695

SPACER

$19.79

44

109-8007

LINK-ADJUSTER, DECK LIFT

$16.49

45

109-7840

ADJUSTER-LIFT, DECK

$8.51

46

109-8353

TRUNNION

$15.39

47

3218-5

Nut-Jam 1/2-13

$1.25



116-0886

SPRING-EXTENSION

$126.99
