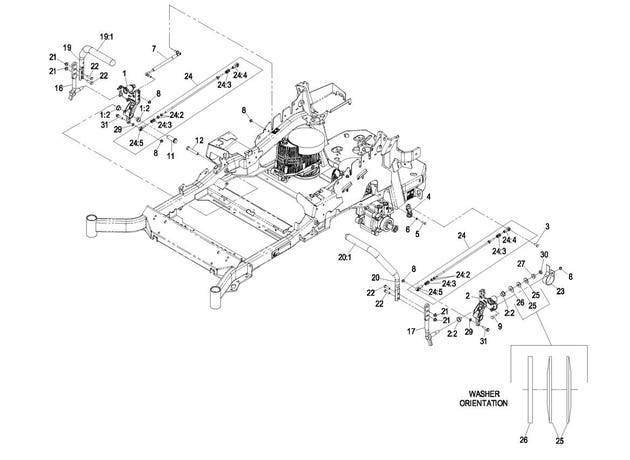

eXmark MN LZZ27KC606 Motion Control Group

1

116-0880

RH MOTION CONTROL AND BUSHING ASM

$60.49

2

116-0881

LH MOTION CONTROL AND BUSHING ASM

$60.49

2:2

109-8054

Bushing-Flanged

$5.75

3

116-0648

Screw-HH 5/16-18 x 1 W/Patch

$1.68

4

109-4581

ARM-CONTROL, PUMP

$9.95

5

9080046

Screw-HH 1/4-20 x 7/8

$5.75

6

1-303435

Washer-Spring Disc 1/4

$1.81

7

142-8117

DAMPER, MOTION CONTROL

$80.99

8

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

9

3230-2

Bolt-Carriage 5/16-18 x 1

$1.68

11

109-5891

HUB-THREADED

$15.39

12

325-12

Screw-HH 1/2-13 x 3

$6.83

16

116-0039

LEVER-CONTROL MOTION, RH

$54.99

17

116-0040

LEVER-CONTROL MOTION, LH

$54.99

19

135-4371

RH HANDLE ASM

$75.99

20

135-4373

LH HANDLE ASM

$75.99

20:1

109-5668

GRIP-LEVER, CONTROL

$15.39

21

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

22

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

23

109-5575

SPRING-LEAF

$16.49

24

109-8106

FRONT PUMP LINKAGE ASM

$78.09

24:2

3219-2

Nut-Hex 5/16-24

$1.11

24:3

1-323245

Spring-Compression

$7.07

24:4

1-633152

Balljoint

$20.89

24:5

1-543017

Balljoint

$20.89

25

109-9505

Washer, Spring Disc 1/2

$5.75

26

3256-6

Washer

$0.83

27

32128-56

Nut-Hex 1/2-13 Flange

$12.09

29

3256-23

Washer-5/16 SAE

$2.59

30

3218-5

Nut-Jam 1/2-13

$1.25

31

115-1794

Screw-Hex Flange 5/16-18 x 1 1/2

$2.46



109-8107

PUMP LINKAGE REAR ASM

$78.09
