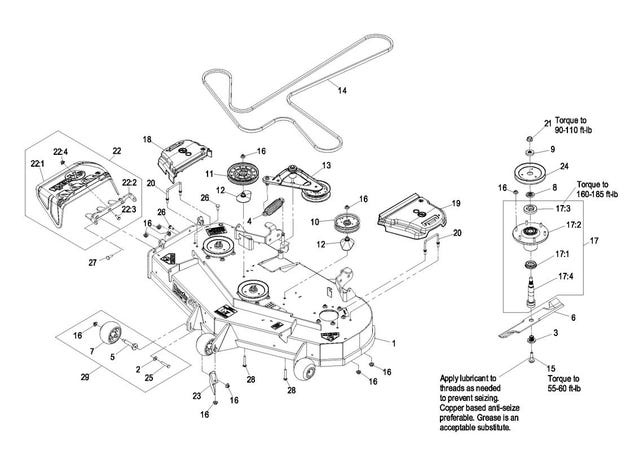

eXmark MN LZZ24KA526 52" Deck Group

1

109-9149

ASM,DECK W/ DECALS 52

$3,375.99

2

98-5975

Washer-Spring Disc 3/8

$3.71

3

103-3037

BUSHING,SPLINED

$23.09

4

116-6317

SPRING-EXTENSION

$28.59

5

126-2928

KIT, ANTI-SCALP ROLLER AXLE

$27.49

6

103-6402-S

SPK, BLADE NOTCHED 18.0 (.94 HOLE)

$31.89

7

103-8415

ROLLER-ANTI-SCALP

$24.19

8

103-9522

SPACER,SPLINED STEPPED

$7.55

9

103-9523

SPACER,SPLINED

$8.99

10

1-613098

PULLEY-IDLER

$48.39

11

126-7685

IDLER-PULLEY

$63.79

12

109-2872

SPACER-PULLEY

$23.09

13

116-3755

DECK IDLER ASM

$234.99

14

135-5776-SL

BELT,V-B X 186.00" WITH SLEEVE

$154.99

15

109-9220

Screw-SEMS 1/2-20 x 2.19

$9.11

17

109-6917

ASM,SPINDLE HOUSING

$357.99

17:1

103-9504

GUARD,BOTTOM

$12.09

17:2

103-9539

ASM,CUTTER HOUSING

$343.99

17:3

109-0916

NUT, SPINDLE 7/8-14

$25.29

17:4

109-6881

SPINDLE,DOUBLE SPLINE

$127.99

18

109-6935

COVER-BELT, RH

$39.59

19

109-6936

COVER-BELT, LH

$39.59

20

109-6982

WIREFORM-COVER

$12.09

21

109-7033

Nut-Flange 5/8-18 Centerlock

$2.98

22

109-7188

ASM,DISCHARGE CHUTE

$97.99

22:1

109-2738

CHUTE,DISCHARGE

$75.89

22:2

109-8675-01

BRACKET,DISCHARGE CHUTE

$52.79

22:4

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

23

109-9915-01

BAFFLE,DISCHARGE 52/60

$35.19

24

116-0185

SHEAVE,BLADE DRIVE

$61.59

25

3211-46

Screw-HH 3/8-24 x 2 Gr8

$2.98

26

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

27

3231-28

Bolt-Carriage 3/8-16 x 1 1/4

$4.79

28

3231-44

Bolt-Carriage 3/8-16 x 2 1/2

$3.11

29

116-9981

KIT, ANTI-SCALP ROLLER

$53.89

30

109-9645

ASM,DECK COMPLETE 526

product not available CALL FOR AVAILABILITY

$1.00



116-5175-S

SPK,BLADE-EXTREME 2, 18.00"

$31.89



103-6382-S

SPK, BLADE SOLID 18.0 (.94 HOLE)

$37.39



103-6387-S

SPK, BLADE LOW LIFT 18.0 (.94 HOLE)

$32.99



103-6392-S

SPK, BLADE MULCH 18.0 (.94 HOLE)

$31.89
