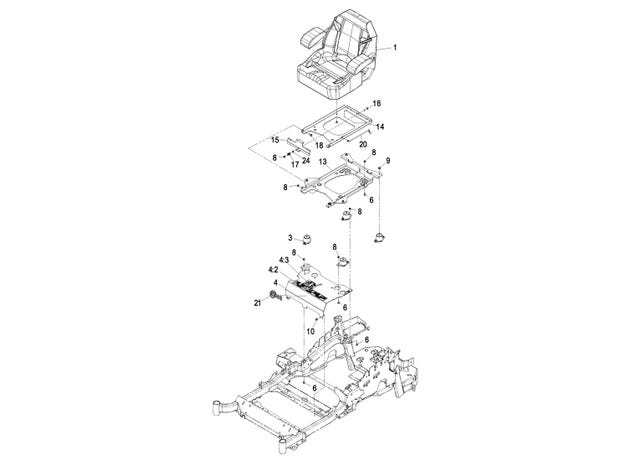

eXmark MN LZZ24KA526CA Seat Group

1

116-0036

SEAT,EXMARK STANDARD SERVICE

product not available CALL FOR AVAILABILITY

$0.01

3

109-9034

ISOLATOR-SEAT

$70.39

4

116-2323

MOUNT-SEAT

$224.99

4:2

109-7069

DECAL-CONSOLE

$14.29

4:3

116-0211

DECAL-SERVICE AID

$11.99

6

3230-23

Bolt-Carriage 5/16-18 x 3/4 short neck

$1.25

8

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

9

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

10

9266934

Screw-HWH 5/16 x 1/2 TF

$9.95

13

116-0181-03

PLATE-SUPPORT, SEAT TILT

$268.99

14

116-0179-03

PLATE-FRAME, SEAT TILT

$159.99

15

109-9881-03

PLATE-LATCH, SEAT

$19.79

16

3230-4

Bolt-Carriage 5/16-18 x 1 1/2

$4.43

17

107-3017

SPRING-COMPRESSION

$3.11

18

116-1297

SCREW-SHOULDER

$5.75

20

116-0070

ROD-PROP

$21.99

21

103-2883

DECAL

$9.59

24

3256-23

Washer-5/16 SAE

$2.59
