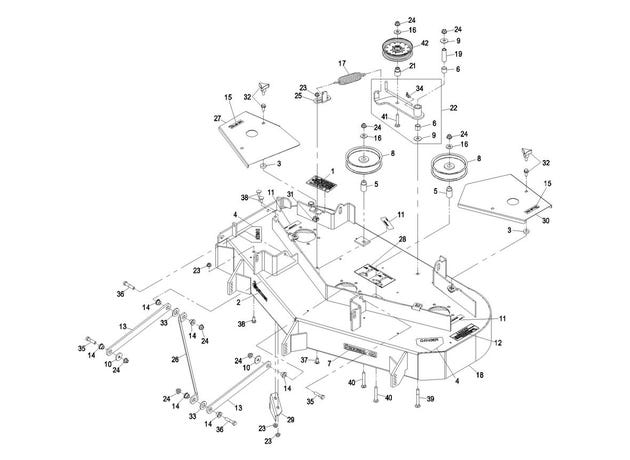

eXmark MN PHZ19KA343 Deck Group 44"

1

1-303508

DECAL-WARNING, DISCHARGE

$5.75

2

1-303520

Decal, Tri-Vantage

product not available CALL FOR AVAILABILITY

$0.01

3

1-323417

Washer-Belt Shield

$3.47

4

1-403005

DECAL-DANGER

$5.75

5

1-413113

BUSHING-IDLER

$6.35

6

1-513034

SLEEVE-BEARING

$8.15

7

1-523417

Decal, Commercial 44

$21.99

8

1-613098

PULLEY-IDLER

$48.39

9

52-2860

Washer

$1.25

10

63-8410

Washer

$1.81

11

98-5954

DECAL-COVER, MISSING

$8.51

12

103-1077

Decal, Bolt Torque

$9.11

13

103-3898

Flat, Strut

$24.19

14

103-3900

SPACER-STRUT

$8.87

15

1-513742

DECAL,NO STEP

$6.11

16

3256-4

Washer-3/8 Std

$1.94

17

116-6316

SPRING-EXTENSION

$23.09

18

109-3122

Asm, Deck W/Decals - DISCONTINUED

product not available CALL FOR AVAILABILITY

$0.01

19

103-9405

BUSHING,IDLER ARM

$18.69

20

109-3521

Asm, Deck Complete - DISCONTINUED

product not available CALL FOR AVAILABILITY

$0.01

21

103-9948

Bushing, Idler

$17.59

22

109-4747

ASM,IDLER PHAZER DECKS

$115.99

23

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

24

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

25

109-0377

Anchor, Deck Spring - DISCONTINUED

$12.49

26

109-0381

Brace, Deck Linkage

$46.19

27

109-0390-01

Shield, Belt (RH) - DISCONTINUED

product not available CALL FOR AVAILABILITY

$0.01

28

109-2465

Decal, Belt Routing

$9.71

29

109-2610-01

Baffle, Discharge

$46.63

30

109-2633-01

Shield, Belt (LH) - DISCONTINUED

$75.78

31

109-3100

Nut-Cage 5/16

$5.51

32

3234-47

Screw-HH FLG 5/16-18 x 3/4

$2.98

33

3256-27

Washer-5/8 SAE

$3.11

34

302-40

Zerk-90° 1/4-28

$3.59

35

323-8

Screw-HH 3/8-16 x 1 1/2

$3.59

36

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

37

3230-1

Bolt-Carriage 5/16-18 x 3/4

$1.94

38

3230-23

Bolt-Carriage 5/16-18 x 3/4 short neck

$1.25

39

3231-10

Bolt-Carriage 3/8-16 x 3

$5.03

40

3231-31

Bolt-Carriage 3/8-16 x 2 1/2

$7.91

41

3231-6

Bolt-Carriage 3/8-16 x 2

$3.23

42

126-9187

PULLEY-IDLER, FLAT

$61.59



109-3351

Knob-5/16X3/4 3-Prong

$7.07
