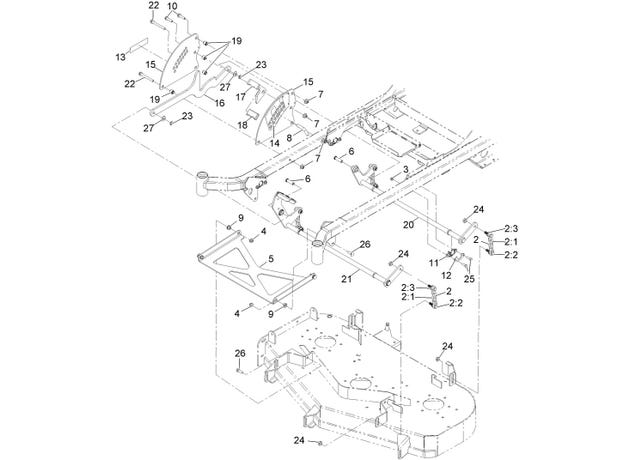

eXmark MN PNE22KA482 Deck Lift Assembly

2

103-9817

DECK CHAIN ASM

$15.39

2:1

1-633447

CHAIN-LIFT, DECK

$11.99

2:2

103-1898

Screw-HH 7/16-20 x 1-5/8 Sp

$2.33

3

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

4

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

5

109-3723-01

STRUT-DECK

$188.99

6

109-5819

Pin-Clevis

$12.09

7

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

8

109-8757

PIN-HOC

$9.95

9

109-8788

BUSHING-FLANGED

$7.31

10

114-4681

SCREW-HHF

$3.59

11

115-5065

BUSHING-FLANGE

$8.51

12

116-2887

GUSSET-LIFT, DECK

$5.75

13

116-3885

DECAL-E-SERIES

$7.79

14

116-4308

DECAL-HEIGHT OF CUT

$18.69

15

116-4309-03

PLATE,DECK LIFT

$98.99

16

116-4310-03

LINK-HOC

$98.99

17

116-4311

TRANSPORT LOCK-HOC

$47.29

18

116-4312

GRIP-FLAT

$3.59

19

116-4313

SPACER-STEP, DOUBLE

$5.75

20

116-4314-03

WLD,DECK LIFT SHAFT-REAR - DISCONTINUED

product not available CALL FOR AVAILABILITY

$0.01

21

116-6011-03

WLD-DECK LIFT SHAFT FRT

$169.99

22

116-4701

SCREW-HHF

$3.11

23

32120-47

RING-RETAINING, EXTERNAL

$1.55

24

32128-37

Nut-Whizlock 7/16-14

$4.67

25

322-5

Screw-HH 5/16-18 x 1

$0.74

26

119-4162

SCREW-CARR

$2.07

27

3256-26

Washer-1/2 SAE

$0.59
