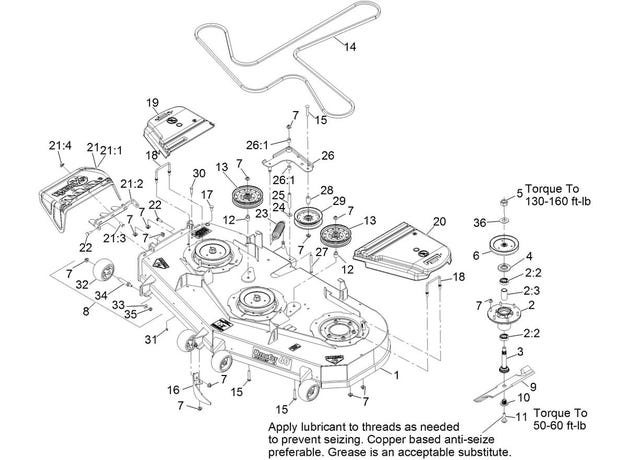

eXmark MN PNS740KC604 Deck Assembly

1

116-5812

DECK ASM,W/DECALS 604

$2,755.99

2

116-3344

ASM-CUTTER HSG WITH BEARINGS

$146.99

2:2

116-0720

BEARING-BALL

$23.09

2:3

116-3312

SPACER-BEARING

$9.59

3

116-3341

ASM-SPINDLE AND SEAL

$77.99

4

116-1286

GUARD,BEARING TOP .989

$5.99

5

116-7306

NUT-HEX

$3.11

6

116-0676

SHEAVE,BLADE DRIVE 7.25

$71.49

8

116-9981

KIT, ANTI-SCALP ROLLER

$53.89

9

103-6383-S

SPK, BLADE SOLID 20.5 (.94 HOLE)

$35.19

9

103-6388-S

SPK, BLADE LOW LIFT 20.5 (.94 HOLE)

$38.49

9

103-6393-S

SPK, BLADE MULCH 20.5 (.94 HOLE)

$31.89

9

103-6403-S

SPK, BLADE NOTCHED 20.5 (.94 HOLE)

$32.99

9

116-5174

BLADE-EXTREME 2, 20.50"

product not available CALL FOR AVAILABILITY

$1.00

10

103-3037

BUSHING,SPLINED

$23.09

11

109-9220

Screw-SEMS 1/2-20 x 2.19

$9.11

12

1-633456

BUSHING-IDLER

$5.39

13

126-9189

IDLER-PULLEY, FLAT 6.00X1.00

$63.79

14

114-8154

BELT-V

$156.99

15

3231-44

Bolt-Carriage 3/8-16 x 2 1/2

$3.11

16

116-5614-01

DOGLEG - LZ60

$60.49

18

109-6982

WIREFORM-COVER

$12.09

19

116-0094

COVER-BELT, RH

$80.99

20

109-6938

COVER-BELT, LH

$89.99

21

109-7188

ASM,DISCHARGE CHUTE

$97.99

21:1

109-2738

CHUTE,DISCHARGE

$75.89

21:2

109-8675-01

BRACKET,DISCHARGE CHUTE

$52.79

21:3

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

21:4

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

22

3231-28

Bolt-Carriage 3/8-16 x 1 1/4

$4.79

23

116-6317

SPRING-EXTENSION

$28.59

24

52-2860

Washer

$1.25

25

116-5111

BUSHING

$34.09

26

126-0976

IDLER ARM ASM

$100.99

26:1

1-513034

SLEEVE-BEARING

$8.15

27

323-23

SCREW-HH

$6.11

28

116-4714

BUSHING-IDLER

$16.49

29

126-9196

IDLER-PULLEY, FLAT

$62.69

30

112-8387

Bolt-HH Shoulder 1/4-20 x 1.64

$8.51

31

104-7201

Nut-Nyloc 1/4-20 Flg

$1.68

32

1-603299

ROLLER-SCALP, ANTI

$23.09

33

98-5975

Washer-Spring Disc 3/8

$3.71

34

126-2928

KIT, ANTI-SCALP ROLLER AXLE

$27.49

35

3290-357

Nut-Whizlock 3/8-16

$1.11

36

103-2802

Washer-Spring Disc 3/4

$5.75
