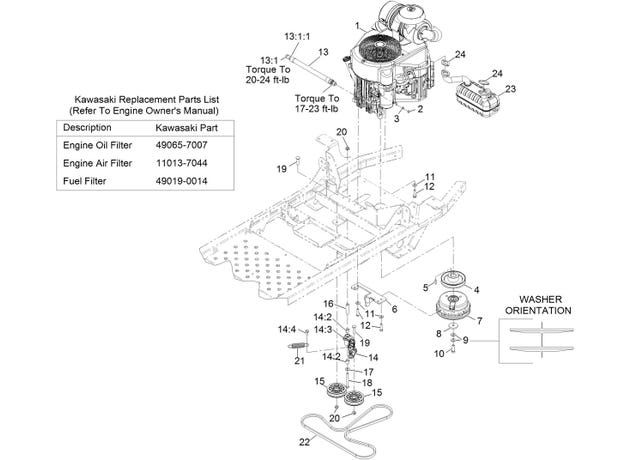

eXmark MN PNS730GKA604A3 Engine Assembly

2

3217-5

Nut-Hex 1/4-20

$0.83

3

3256-22

Washer-1/4 SAE

$0.59

4

116-1946

SHEAVE-PUMP, DRIVE

$75.89

5

1-807259

KEY

$2.46

6

116-4773-03

ANCHOR-CLUTCH

$27.49

7

116-1604

CLUTCH

product not available CALL FOR AVAILABILITY

$0.01

8

109-6919

WASHER-PLAIN

$5.75

9

1-603610

Washer-Spring Disc 7/16

$5.75

10

109-9761

SCREW-HH

$5.75

11

98-5975

Washer-Spring Disc 3/8

$3.71

12

323-8

Screw-HH 3/8-16 x 1 1/2

$3.59

13

116-4924

ENGINE OIL DRAIN HOSE ASM

$38.49

13:1

353-508

PLUG-HH

$8.87

13:1:1

237-42

O-RING

$3.24

14

126-0973

IDLER ARM ASM

$80.99

14:2

1-513034

SLEEVE-BEARING

$8.15

14:3

302-40

Zerk-90° 1/4-28

$3.59

14:4

32144-11

Screw-HWH 5/16-18 x 3/4 TF

$8.51

15

116-2456

PULLEY-FLAT IDLER

$24.19

16

1-603384

BUSHING-PIVOT, IDLER

$14.29

17

3256-4

Washer-3/8 Std

$1.94

18

323-15

Screw-HH 3/8-16 x 3 1/2

$2.20

19

3231-5

Bolt-Carriage 3/8-16 x 1 3/4

$1.81

20

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

21

1-603402

SPRING-EXTENSION

$8.87

22

115-9613

V-BELT

$37.94

23

117-7256

MUFFLER-KAWASAKI

$188.99

24

1-653313

GASKET-EXHAUST

$5.03
