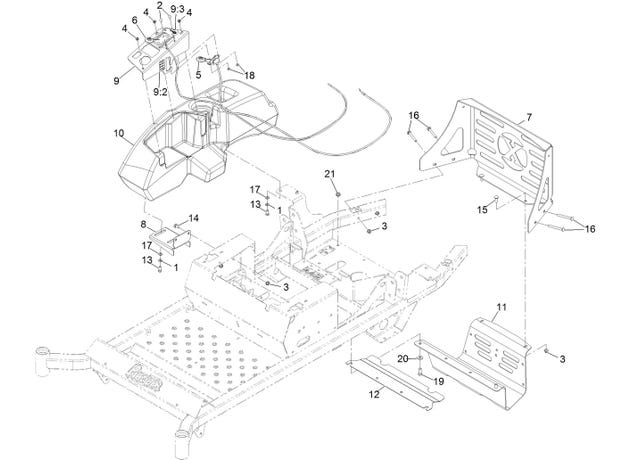

eXmark MN PNS720GKC52300 Controls Assembly

1

1-805005

Washer-Lock 5/16 Heavy

$1.55

2

1-807513

Bolt-Carriage #10-24 x 1/2

$2.98

3

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

4

109-2661

Screw-PPH #10-24 x 1/2

$1.55

5

126-2800

CONTROL-THROTTLE

$42.89

6

109-9147

CONTROL-CHOKE

$39.59

7

116-3453-03

PANEL,REAR GUARD

$216.99

8

116-3495-03

BRACKET-TANK AND FENDER

$17.59

9

116-9051

ASM, CONTROL PANEL W/ DECAL

$60.49

9:2

116-1496

DECAL,FUSE BLOCK

$5.75

9:3

116-4465

DECAL-THROTTLE CHOKE

$9.11

10

116-4138

CONSOLE,RH

$336.99

11

126-4275-03

GUARD, MUFFLER

$126.99

12

126-0456-03

SHIELD, HEAT

$23.09

13

322-3

Screw-HH 5/16-18 x 3/4

$1.11

14

3230-18

Bolt-Carriage 5/16-18 x 5/8

$5.75

15

3230-2

Bolt-Carriage 5/16-18 x 1

$1.68

16

3230-9

Bolt-Carriage 5/16-18 x 2 3/4

$4.07

17

3256-23

Washer-5/16 SAE

$2.59

18

3296-2

Nut-Nyloc #10-24

$2.46

19

323-6

Screw-HH 3/8-16 x 1

$2.98

20

98-5975

Washer-Spring Disc 3/8

$3.71

21

3290-357

Nut-Whizlock 3/8-16

$1.11
