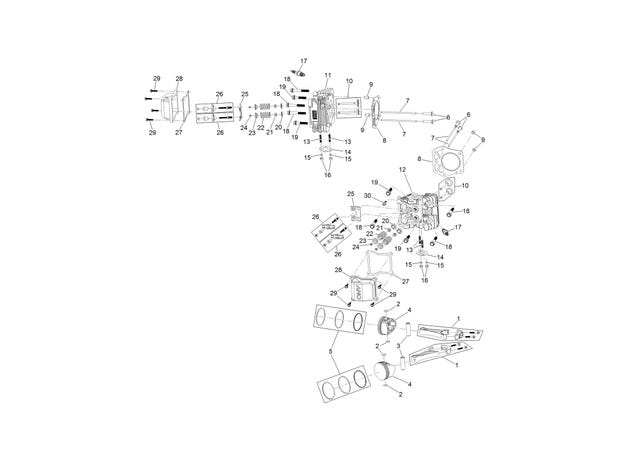

eXmark MN QTS708GEM50200 Piston and Cylinder Head Assembly Engine Assembly No. 127-9041

1

127-9256

CONNECTING ROD ASM

$47.29

2

127-9258

CLIP-PIN, PISTON

$1.55

3

127-9257

PIN-PISTON

$10.79

4

127-9259

PISTON

$40.69

5

127-9260

PISTON RING SET

$20.89

6

127-9224

LIFTER-VALVE

$7.07

7

127-9225

ROD-PUSH

$8.51

8

127-9226

GASKET-HEAD, CYLINDER

$13.19

9

127-9227

PIN-DOWEL

$1.55

10

127-9228

VALVE SET

$36.29

11

133-9802

HEAD-CYLINDER, RIGHT

$144.99

12

133-9804

HEAD-CYLINDER, LEFT

$144.99

13

127-9236

STUD

$1.94

14

120-4317

GASKET-EXHAUST

$5.75

15

127-9279

WASHER-LOCK, SPLIT

$3.11

16

121-0199

NUT-HH

$1.55

17

81-3250

SPARK PLUG

$8.15

18

127-9231

SCREW-HWH

$3.47

19

127-9232

SCREW-HWH

$3.47

20

120-4303

SEAT-SPRING, VALVE

$8.51

21

120-4304

SEAL-STEM, VALVE

$18.69

22

120-4305

SPRING-VALVE

$7.07

23

120-4306

RETAINER-SPRING, VALVE

$12.09

24

120-4307

KEEPER-VALVE

$9.23

25

127-9233

PLATE-GUIDE, PUSH ROD

$7.07

26

136-7881

ROCKER ARM ASM

$13.19

27

127-9295

GASKET-VALVE COVER

$9.59

28

127-9050

COVER-VALVE

$40.69

29

120-4225

SCREW-HHF

$2.07

30

120-4214

SCREW-SHOULDER, HH

$3.23
