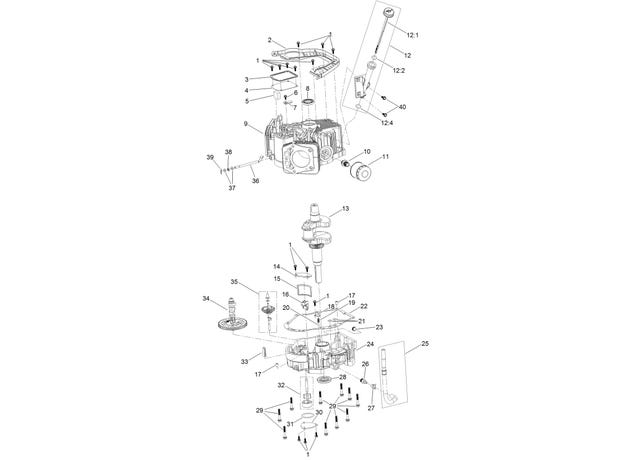

eXmark MN QTS708GEM50200 Crankcase and Crankshaft Assembly Engine Assembly No. 127-9041

#
Part #
Item
Price
Qty
Add
2
127-9212
BAFFLE
$38.49
3
127-9213
COVER-BREATHER
$11.99
4
127-9214
GASKET-BREATHER
$8.87
5
127-9215
FILTER-BREATHER
$12.09
6
120-4216
SCREW-HHF
$1.68
7
127-9217
VALVE-BREATHER
$13.19
8
120-4267
SEAL-OIL
$20.89
9
127-9223
CRANKCASE
$446.99
10
136-7884
ADAPTOR-FILTER, OIL
$13.19
11
126-5234
ASM-FILTER ENGINE OIL SERVICE
$24.19
12
127-9218
OIL TUBE ASM
$24.19
12:1
127-9283
DIPSTICK
$15.39
12:2
127-9284
O-RING
$5.75
12:4
127-9286
O-RING
$5.75
13
127-9255
CRANKSHAFT
$278.99
14
127-9261
COVER-SCREEN, OIL
$7.07
15
127-9262
SCREEN-OIL
$15.39
16
127-9263
RETAINER-SCREEN
$5.75
17
120-4274
PIN-DOWEL
$1.68
18
127-9264
PLATE-RETAINER
$9.95
19
127-9265
SPRING
$1.55
20
127-9266
VALVE-BALL
$1.55
21
120-4262
O-RING
$1.55
22
127-9267
GASKET-COVER, CRANKCASE
$16.49
23
120-4285
PLUG-DRAIN
$8.75
24
133-9806
COVER-CRANKCASE
$234.99
25
127-9293
OIL DRAIN HOSE ASM
$49.49
26
127-9275
FITTING-HOSE
$15.39
27
127-9276
CLAMP-HOSE
$2.98
28
127-9271
SEAL
$16.49
29
121-0473
SCREW-HHF
$3.11
30
127-9274
COVER-OIL PUMP
$9.95
31
127-9273
O-RING
$2.98
32
127-9272
OIL PUMP ASM
$37.39
33
120-4275
DEFLECTOR-OIL, RUBBER
$1.68
34
133-1568
CAMSHAFT
$92.99
35
136-7882
GOVERNOR ASM
$28.59
36
127-9238
SHAFT-GOVERNOR
$8.87
37
120-4258
WASHER-PLAIN
$1.55
38
120-4257
SEAL-OIL
$5.75
39
120-4256
PIN-HAIR
$1.55
40
120-4232
SCREW-HHF
$1.68
