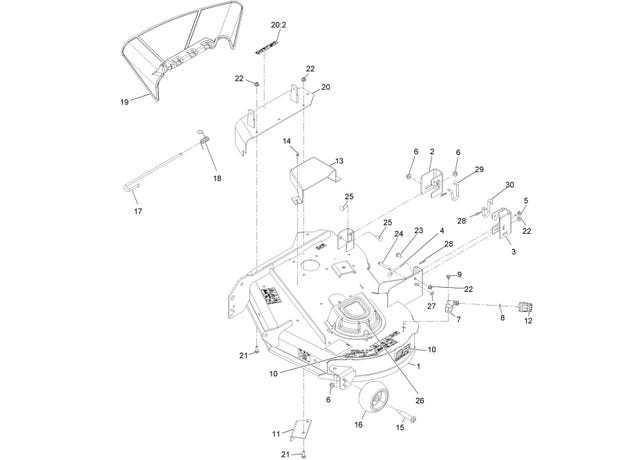

eXmark MN QTS452CEM34200 Deck Assembly

1

130-7017

34 INCH DECK AND DECAL ASM

$680.99

2

131-4138

BRACKET-HANGER, RH

$14.29

3

131-1091

BRACKET-HANGER, LH

$14.29

4

131-0955

ROD-LEVEL, DECK

$8.51

5

120-7024

Screw-HH FLG 1/4-20 x 3/4 TF

$2.98

6

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

7

133-9289

FITTING-WASHOUT

$7.07

8

46-6290

O-Ring

$3.24

9

46-8560

Screw-HHF 1/4-20 X 1/2

$2.33

10

126-7154

DECAL-34 SERIES 2

$7.79

11

127-0096-03

BAFFLE-CUTOFF

$16.49

12

95-3270

CONNECTOR-HOSE

$24.19

13

130-6992-05

COVER-DECK BELT

$35.19

14

32144-1

Screw-HWH #10-24 x 1/2 Taptite

$3.83

15

112-3977

Bolt-HH Shoulder 3/8-16 x 3.79

$12.09

16

1-603299

ROLLER-SCALP, ANTI

$23.09

17

109-8854

PIN-CHUTE

$16.49

18

121-2983

SPRING-TORSION

$5.39

19

121-0739

DEFLECTOR-DISCHARGE

$65.99

20

131-3961

COVER ASM W/DECAL

$73.69

20:2

93-7009

DECAL-DANGER

$8.15

21

3230-22

Bolt-Carriage 5/16-18 x 1 Sp

$2.59

22

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

23

3230-23

Bolt-Carriage 5/16-18 x 3/4 short neck

$1.25

24

110-0618

PIN-CLEVIS

$14.29

25

3231-2

Bolt-Carriage 3/8-16 x 1

$2.20

26

108-7889

COVER-BELT

$35.19

27

3256-23

Washer-5/16 SAE

$2.59

28

1-806003

PIN-COTTER

$1.81

29

131-8734

LINK-RETENTION, DECK (RH)

$8.51

30

131-4131

LINK-RETENTION, DECK (LH)

$8.51
