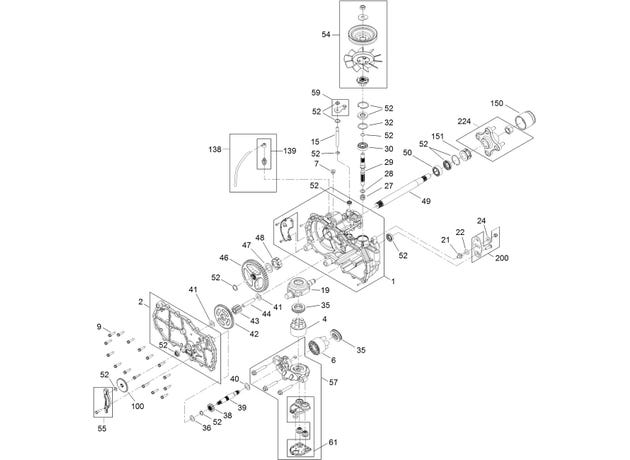

eXmark MN QTS452CEM34200 Right Hand Hydro Transaxle Assembly No. 119-3341

1

106-8674

MAIN HOUSING ASM

$718.99

2

106-8675

SIDE ASM

$630.99

4

110-8561

PUMP BLOCK ASM

$322.99

6

103-2666

CYLINDER BLOCK KIT

$459.99

7

104-2189

PLUG-THREAD, STRAIGHT

$26.39

9

104-5305

SCREW-HHF

$8.15

15

106-8678

ROD-BYPASS

$57.19

19

104-5304

SWASHPLATE-TRUNNION

$180.99

21

104-2116

STUD

$39.59

22

112-9853

PUCK-FRICTION

$8.87

24

114-8491

WASHER

$5.75

27

94-1936

SPRING-BLOCK

$9.35

28

120-5538

WASHER

$5.75

29

104-5306

SHAFT-INPUT

$340.99

30

104-5311

BEARING-BALL

$45.09

32

104-5308

SPACER

$9.59

35

94-6922

BEARING-THRUST

$63.79

36

104-5339

WASHER-FLAT

$7.31

38

104-5316

GEAR-PINNION, 13T

$34.09

39

106-8683

SHAFT-MOTOR

$263.99

40

104-5360

WASHER

$8.63

41

94-1933

WASHER

$7.07

42

104-5317

GEAR-10T/48T

$178.99

43

104-5318

GEAR-JACKSHAFT, 10T

$81.99

44

104-5329

PIN-JACKSHAFT

$104.99

46

112-9855

GEAR-52T, BULL

$147.99

47

112-9856

WASHER

$9.11

48

112-9857

BEARING-SLEEVE

$19.79

49

121-5732

SHAFT-AXLE

$168.99

50

112-9859

BUSHING-AXLE

$15.39

52

106-8686

SEAL KIT

$171.99

54

121-5729

FAN PULLEY KIT

$107.99

55

106-8688

BRAKE ARM KIT

$38.49

57

112-9862

CENTER SECTION FILTER KIT

$489.99

58

104-2147

SEALANT, SILICONE - NON-FLAMMABLE

$92.99

59

107-2489

BYPASS ARM KIT

$76.99

61

114-1634

FILTER KIT

$42.89

100

106-8694

DISC-BRAKE, COG

$61.59

138

112-9866

BREATHER KIT

$49.49

139

114-1635

BREATHER ASM

$42.89

150

116-6214

CAP-AXLE, LONG

$17.59

151

121-5734

TUBE-AXLE

$7.07

200

117-5362

CONTROL ARM KIT

$30.79

224

116-3872

HUB-OFFSET

$71.49
