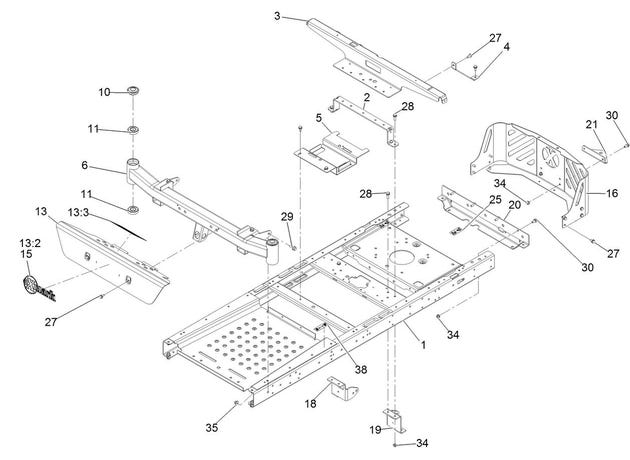

eXmark MN QTE708GEM50200 Main Frame Assembly

1

135-0508-01

RIVETED FRAME ASM (WIDE LEVER)

$363.99

2

135-0687-03

BRACE-SEAT, REAR (WIDE)

$20.89

3

133-7063-03

SUPPORT-POD

$81.39

4

119-3431-03

SUPPORT-TANK, REAR

$7.07

5

135-0507-03

BRACKET-BATTERY

$24.19

6

125-1726-01

AXLE ASM

$325.99

10

116-4348

CAP-GREASE

$5.75

11

109-3678

Bearing-Ball

$15.39

13

133-1159

FOOTREST ASM

$144.99

13:3

132-0869

DECAL-DANGER

$9.95

15

126-6969

Decal-Exmark Logo

$7.79

16

131-1018-03

GUARD-ENGINE, WIDE

$105.99

18

137-7020-01

MOUNT-HYDRO, FRONT (RIGHT)

$16.49

19

139-3211-01

MOUNT-HYDRO, FRONT (LEFT)

$15.39

20

130-6946-01

CROSSMEMBER-REAR, WIDE

$43.99

21

117-1232-03

BRACKET-HITCH

$30.79

25

121-2989

DECAL-BYPASS

$5.75

27

32144-70

Screw-HWH 5/16-18 x 3/4 TF

$2.98

28

3234-29

Screw-HH FLG 5/16-18 x 1

$3.24

29

3234-42

Screw HHF 3/8-16 x 1

$3.59

30

3234-47

Screw-HH FLG 5/16-18 x 3/4

$2.98

34

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

35

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

38

115-9625

DECAL-BRAKE, PARKING

$5.75
