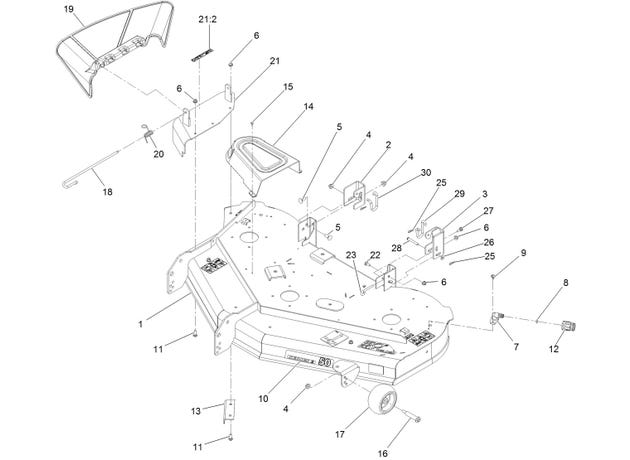

eXmark MN QSS725GKC50200 Deck Assembly

1

131-3614

DECK AND DECAL ASM

$1,528.99

2

131-4138

BRACKET-HANGER, RH

$14.29

3

131-3935

BRACKET-HANGER, LH

$14.29

4

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

5

3231-2

Bolt-Carriage 3/8-16 x 1

$2.20

6

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

7

133-9289

FITTING-WASHOUT

$7.07

8

46-6290

O-Ring

$3.24

9

46-8560

Screw-HHF 1/4-20 X 1/2

$2.33

10

126-1770

DECAL-SERIES 2 - 50

$9.11

11

3230-22

Bolt-Carriage 5/16-18 x 1 Sp

$2.59

12

95-3270

CONNECTOR-HOSE

$24.19

13

120-7951-03

BAFFLE-CUTOFF

$26.39

14

108-7890

COVER-BELT

$21.99

15

32144-1

Screw-HWH #10-24 x 1/2 Taptite

$3.83

16

112-3977

Bolt-HH Shoulder 3/8-16 x 3.79

$12.09

17

1-603299

ROLLER-SCALP, ANTI

$23.09

18

109-8854

PIN-CHUTE

$16.49

19

121-0739

DEFLECTOR-DISCHARGE

$65.99

20

121-2983

SPRING-TORSION

$5.39

21

131-3962

COVER ASM W/DECAL

$108.99

21:2

93-7009

DECAL-DANGER

$8.15

22

3230-23

Bolt-Carriage 5/16-18 x 3/4 short neck

$1.25

23

131-0955

ROD-LEVEL, DECK

$8.51

25

1-806003

PIN-COTTER

$1.81

26

3256-23

Washer-5/16 SAE

$2.59

27

120-7024

Screw-HH FLG 1/4-20 x 3/4 TF

$2.98

28

110-0618

PIN-CLEVIS

$14.29

29

131-8734

LINK-RETENTION, DECK (RH)

$8.51

30

131-4131

LINK-RETENTION, DECK (LH)

$8.51
