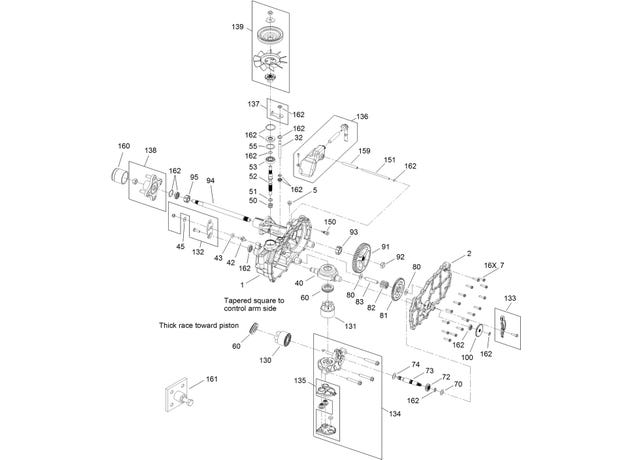

eXmark MN QTE651KA421 Left Hand Hydro Transaxle Assembly No. 119-3330

1

120-5532

MAIN HOUSING ASM

$894.99

2

120-5534

HOUSING SIDE KIT

$235.99

5

104-2189

PLUG-THREAD, STRAIGHT

$26.39

7

117-5359

SCREW-HHF

$3.47

13

104-2147

SEALANT, SILICONE - NON-FLAMMABLE

$92.99

32

106-8678

ROD-BYPASS

$57.19

40

104-5304

SWASHPLATE-TRUNNION

$180.99

42

104-2116

STUD

$39.59

43

112-9853

PUCK-FRICTION

$8.87

45

114-8491

WASHER

$5.75

50

94-1936

SPRING-BLOCK

$9.35

51

120-5538

WASHER

$5.75

52

104-5306

SHAFT-INPUT

$340.99

53

104-5311

BEARING-BALL

$45.09

55

104-5308

SPACER

$9.59

60

94-6922

BEARING-THRUST

$63.79

70

104-5339

WASHER-FLAT

$7.31

72

104-5316

GEAR-PINNION, 13T

$34.09

73

106-8683

SHAFT-MOTOR

$263.99

74

104-5360

WASHER

$8.63

80

94-1933

WASHER

$7.07

81

104-5317

GEAR-10T/48T

$178.99

82

104-5318

GEAR-JACKSHAFT, 10T

$81.99

83

104-5329

PIN-JACKSHAFT

$104.99

91

120-5539

GEAR-BULL

$91.99

92

104-2142

NUT-HJ

$13.19

93

115-8314

BUSHING-INBOARD

$9.59

94

120-5540

SHAFT-AXLE

$123.99

95

120-5541

BEARING-SLEEVE

$13.19

100

106-8694

DISC-BRAKE, COG

$61.59

130

103-2666

CYLINDER BLOCK KIT

$459.99

131

110-8561

PUMP BLOCK ASM

$322.99

132

117-5362

CONTROL ARM KIT

$30.79

133

106-8688

BRAKE ARM KIT

$38.49

134

112-9861

CENTER SECTION FILTER KIT

$489.99

135

114-1634

FILTER KIT

$42.89

136

121-5730

RH EXPANSION TANK KIT

$93.99

137

120-5549

BYPASS KIT

$41.79

138

121-5731

HUB KIT

$182.99

139

121-5729

FAN PULLEY KIT

$107.99

150

104-5349

FITTING-SAE

$71.49

151

115-8302

HOSE

$7.31

159

121-5728

CASE-TUBE

$7.55

160

125-0041

CAP-AXLE

$34.09

161

130-8482

HUB PULLER KIT

$355.99

162

120-7103

SEAL AND RING KIT

$31.89
