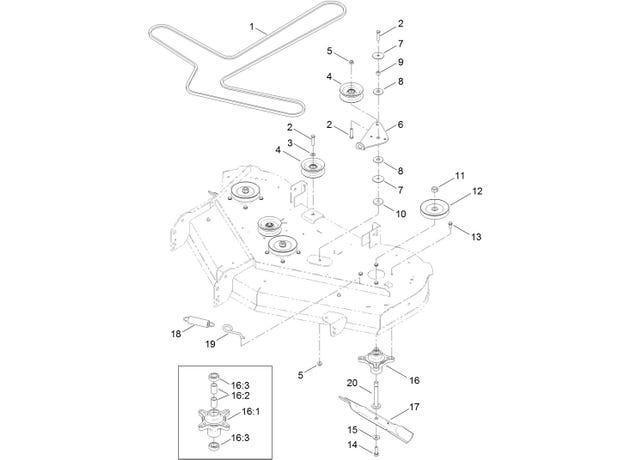

eXmark MN QTE691KA501 50 Inch Deck Belt, Spindle and Blade Assembly

1

119-8820

V-BELT

$65.99

2

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

3

3256-24

Washer-3/8 SAE

$0.83

4

132-9420

PULLEY-IDLER, FLAT

$35.19

5

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

6

114-8540

ARM-IDLER

$21.99

7

120-2229

WASHER

$2.98

8

114-0463

WASHER-FRICTION, COMPOSITE

$5.75

9

115-4986

SPACER

$2.98

10

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

11

3219-6

Nut-Hex 5/8-18

$4.43

12

125-5575

PULLEY

$63.79

13

32144-41

Screw-HWH 3/8-16 x 7/8 Taptite

$5.75

14

26-0671

Screw-HH 7/16-20 x 1.36 Gr8

$9.59

15

3290-465

Washer-Spring Disc

$3.47

16:1

139-3214

SPINDLE ASM

$79.19

16:2

120-7935

SPACER

$2.59

16:3

38-7820

BEARING-BALL

$14.29

17

142-6453-S

SPK-BLADE HI LIFT 17.50 IN

$25.29

18

1-603414

SPRING-EXTENSION

$21.99

19

138-7266

SPRING-RETURN, HOOK

$5.75

20

117-7268

SHAFT-SPINDLE

$30.79
