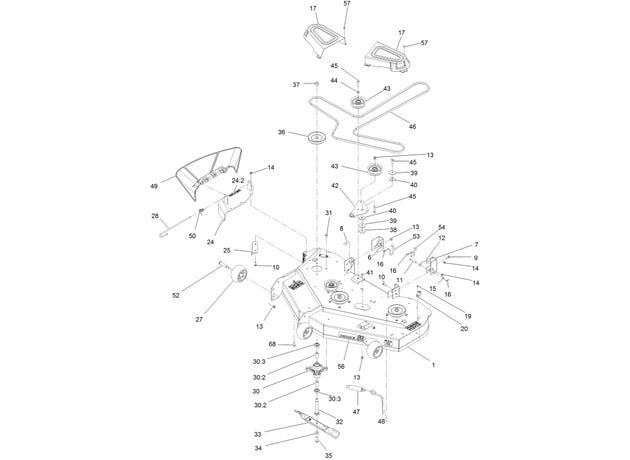

eXmark MN QZS708GEM50200 Deck Assembly

1

135-1073

DECK-50 W/DECALS

$1,465.99

6

131-4138

BRACKET-HANGER, RH

$14.29

7

131-3935

BRACKET-HANGER, LH

$14.29

8

3231-2

Bolt-Carriage 3/8-16 x 1

$2.20

9

120-7024

Screw-HH FLG 1/4-20 x 3/4 TF

$2.98

10

3230-22

Bolt-Carriage 5/16-18 x 1 Sp

$2.59

11

110-0618

PIN-CLEVIS

$14.29

12

131-0955

ROD-LEVEL, DECK

$8.51

13

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

14

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

15

3256-23

Washer-5/16 SAE

$2.59

16

1-806003

PIN-COTTER

$1.81

17

108-7890

COVER-BELT

$21.99

19

32144-4

Screw-HWH 1/4-20 x 1/2 Taptite

$1.68

20

136-4171

COVER-WASHOUT PORT

$3.23

24

131-3962

COVER ASM W/DECAL

$108.99

24:2

93-7009

DECAL-DANGER

$8.15

25

120-7951-03

BAFFLE-CUTOFF

$26.39

27

1-603299

ROLLER-SCALP, ANTI

$23.09

28

109-8854

PIN-CHUTE

$16.49

30

139-3214

SPINDLE ASM

$79.19

30:2

120-7935

SPACER

$2.59

30:3

136-5441

BEARING-BALL

$8.51

31

32144-41

Screw-HWH 3/8-16 x 7/8 Taptite

$5.75

32

117-7268

SHAFT-SPINDLE

$30.79

33

142-6453-S

SPK-BLADE HI LIFT 17.50 IN

$25.29

34

3290-465

Washer-Spring Disc

$3.47

35

26-0671

Screw-HH 7/16-20 x 1.36 Gr8

$9.59

36

125-5575

PULLEY

$63.79

37

3219-6

Nut-Hex 5/8-18

$4.43

38

110-9981

WASHER-PLAIN

$15.39

39

120-2229

WASHER

$2.98

40

114-0463

WASHER-FRICTION, COMPOSITE

$5.75

41

115-4986

SPACER

$2.98

42

114-8540

ARM-IDLER

$21.99

43

132-9420

PULLEY-IDLER, FLAT

$35.19

44

3256-24

Washer-3/8 SAE

$0.83

45

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

46

119-8820

V-BELT

$65.99

47

1-603414

SPRING-EXTENSION

$21.99

48

138-7266

SPRING-RETURN, HOOK

$5.75

49

121-0739

DEFLECTOR-DISCHARGE

$65.99

50

121-2983

SPRING-TORSION

$5.39

52

112-3977

Bolt-HH Shoulder 3/8-16 x 3.79

$12.09

53

131-8734

LINK-RETENTION, DECK (RH)

$8.51

54

131-4131

LINK-RETENTION, DECK (LH)

$8.51

56

126-1770

DECAL-SERIES 2 - 50

$9.11

57

32144-1

Screw-HWH #10-24 x 1/2 Taptite

$3.83

68

322-2

Screw-HH 5/16-18 x 5/8

$2.98
