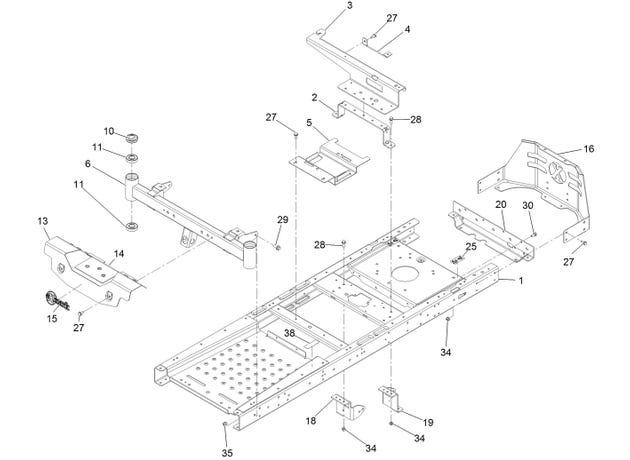

eXmark MN QZE702GEM42200 Main Frame Assembly

1

135-0509-01

FRAME ASM

$333.99

2

135-0686-03

BRACE-SEAT, REAR (NARROW)

$19.79

3

135-0866-03

SUPPORT-POD [BLACK]

$49.49

4

119-3431-03

SUPPORT-TANK, REAR

$7.07

5

135-0507-03

BRACKET-BATTERY

$24.19

6

125-1742-01

AXLE-FRONT, NARROW

$296.99

10

138-7200

CAP-GREASE

$5.75

11

109-3678

Bearing-Ball

$15.39

13

135-3362

FOOTREST ASM

$150.99

14

135-3295

DECAL-WARNING

$5.75

15

126-6575

DECAL-EXMARK LOGO

$6.11

16

135-1882-03

GUARD-ENGINE, NARROW [BLACK]

$103.99

18

137-7020-01

MOUNT-HYDRO, FRONT (RIGHT)

$16.49

19

139-3211-01

MOUNT-HYDRO, FRONT (LEFT)

$15.39

20

130-6950-01

CROSSMEMBER-REAR, NARROW

$41.79

25

121-2989

DECAL-BYPASS

$5.75

27

32144-70

Screw-HWH 5/16-18 x 3/4 TF

$2.98

28

3234-29

Screw-HH FLG 5/16-18 x 1

$3.24

29

3234-42

Screw HHF 3/8-16 x 1

$3.59

30

3234-47

Screw-HH FLG 5/16-18 x 3/4

$2.98

34

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

35

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

38

115-9625

DECAL-BRAKE, PARKING

$5.75
