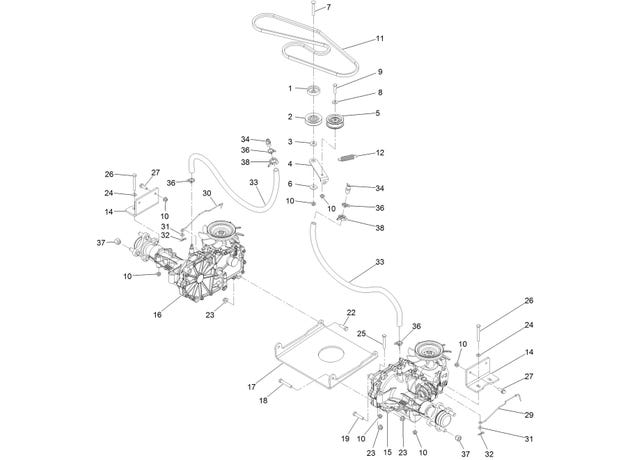

eXmark MN QZS708GEM50200 Transaxle Drive

1

119-3353

SPACER

$12.09

2

119-8822

PULLEY-IDLER

$25.29

3

119-3327

SPACER-ARM, IDLER

$4.31

4

138-7276

ARM-IDLER

$7.07

5

138-7597

PULLEY-IDLER, FLAT

$15.39

6

5-4460

WASHER-PIVOT

$8.51

7

3230-8

SCREW-CARR

$5.27

8

3256-3

Washer-5/16 Std

$0.74

9

322-7

SCREW-HH

$1.25

10

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

11

130-6976

V-BELT

$27.07

12

137-7040

SPRING-RETURN, PEDAL

$5.75

14

121-0745-01

MOUNT-HYDRO

$31.89

15

130-6960

LH HYDRO TRANSMISSION ASM

product not available CALL FOR AVAILABILITY

$0.01

16

130-6961

RH HYDRO TRANSMISSION ASM

product not available CALL FOR AVAILABILITY

$0.01

17

130-0718-01

PLATE-CROSS, HYDRO

$73.69

18

323-11

Screw-HH 3/8-16 x 2 1/4

$2.59

19

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

22

323-7

Screw-HH 3/8-16 x 1 1/4

$3.23

23

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

24

3256-23

Washer-5/16 SAE

$2.59

25

322-11

Screw-HH 5/16-18 x 2 1/4

product not available CALL FOR AVAILABILITY

$1.68

26

322-13

SCREW-HH

$3.59

27

3234-29

Screw-HH FLG 5/16-18 x 1

$3.24

29

130-7048

ROD-BYPASS, LH

$9.95

30

130-7047

ROD-BYPASS, RH

$9.95

31

119-8952

WASHER-SPCL

$0.59

32

3290-307

PIN-COTTER

product not available CALL FOR AVAILABILITY

$0.01

33

136-4182

HOSE-HYDRO

$26.39

34

136-4183

BREATHER KIT

$15.39

36

117-1193

CLAMP-HOSE

$1.68

37

242-50

Nut-Lug 1/2-20

$2.11

38

105-1853

CLAMP-HOSE

$5.75
