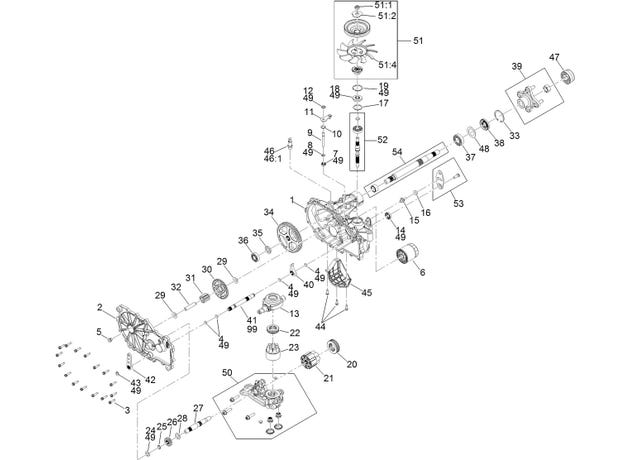

eXmark MN QZS708GEM50200 Right Hand Hydro Transaxle Assembly

#
Part #
Item
Price
Qty
Add
1
121-5748
MAIN HOUSING KIT
$388.99
2
132-0938
LH SIDE COVER KIT
$226.83
3
117-5359
SCREW-HHF
$3.47
4
114-1678
O-RING
$5.75
5
104-2189
PLUG-THREAD, STRAIGHT
$26.39
6
109-3321
Filter-Hydraulic
$28.59
7
139-7497
SEAL-LIP
$7.43
8
106-8677
RING-RETAINING, EXTERNAL
$9.95
9
114-1685
ROD-BYPASS
$36.29
10
106-8679
RING-RETAINING, INTERNAL
$10.79
11
107-2490
ARM-BYPASS
$59.39
12
106-8681
RING-RETAINING, EXTERNAL
$9.95
13
104-5304
SWASHPLATE-TRUNNION
$180.99
14
104-5313
SEAL-LIP
$24.19
15
104-2116
STUD
$39.59
16
112-9853
PUCK-FRICTION
$8.87
17
104-5308
SPACER
$9.59
18
104-5310
SEAL-LIP
$36.29
19
104-5309
RING-RETAINING
$13.19
20
112-4154
BEARING-THRUST
$95.99
21
139-4074
CYLINDER BLOCK ASM KIT
$230.99
22
94-6922
BEARING-THRUST
$63.79
23
110-8561
PUMP BLOCK ASM
$322.99
24
104-5339
WASHER-FLAT
$7.31
25
104-5340
RING-RETAINING
$8.63
26
121-5749
GEAR-16T
$14.29
27
114-1691
SHAFT-MOTOR
$156.99
28
104-5360
WASHER
$8.63
29
94-1933
WASHER
$7.07
30
125-0000
GEAR-43T
$63.79
31
114-1693
GEAR-11T
$28.59
32
104-5329
PIN-JACKSHAFT
$104.99
33
104-2169
RING-RETAINING
$19.79
34
114-1694
GEAR-54T
$128.99
35
120-7975
SPACER
$7.07
36
126-0789
BEARING-BALL
$16.49
37
130-8477
BEARING-BALL
$24.19
38
104-2144
SEAL
$49.49
39
109-5939
HUB KIT
$95.99
40
114-1697
PAWL-BRAKE
$17.59
41
114-1698
SHAFT-BRAKE, INBOARD
$128.99
42
125-0021
HANDLE-BRAKE
$15.39
43
131-0906
RING-RETAINING, EXT
$7.07
44
104-2120
SCREW
$8.75
45
120-7979
GUARD-FILTER, LH
$35.19
46
109-3278
Adapter-Straight
$115.99
46:1
237-42
O-RING
$3.24
47
115-5057
COVER-NUT, AXLE
$18.69
48
121-5745
SPACER
$11.99
49
140-8351
SEAL KIT
$82.99
50
125-0036
CENTER SECTION KIT
$327.99
51
135-7349
FAN AND PULLEY KIT
$83.99
51:1
116-9714
NUT-HJ
$5.75
51:2
116-9708
WASHER-SLOTTED
$5.75
51:4
135-7364
FAN 7.0 X 10 BLADE
$26.39
52
114-8468
INPUT SHAFT KIT
$159.99
53
117-5362
CONTROL ARM KIT
$30.79
54
114-8470
AXLE SHAFT KIT
$244.99
99
135-3604
BRAKE SHAFT SEAL KIT
$152.99
