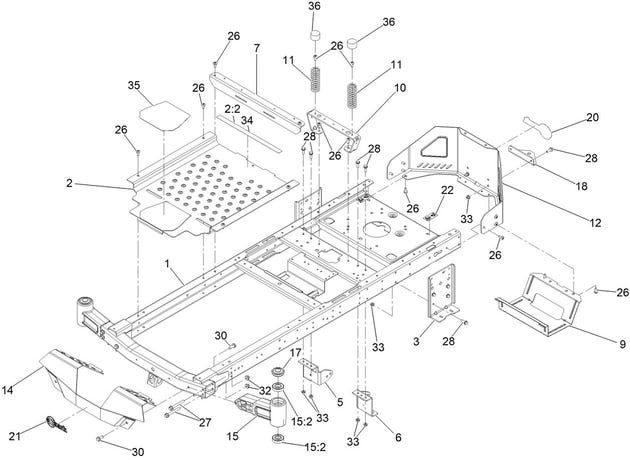

eXmark MN QZS708GEM54200 Main Frame Assembly

1

137-9820-05

FRAME ASM - RIVETED/WELDED

$373.99

2

144-1927

PAN-FLOOR ASM

$156.99

3

138-7520-01

PLATE-MOUNT, HYDRO

$26.39

5

137-7020-01

MOUNT-HYDRO, FRONT (RIGHT)

$16.49

6

139-3211-01

MOUNT-HYDRO, FRONT (LEFT)

$15.39

7

138-9791-05

BRACE-CROSS

$23.09

9

138-0867-03

GUARD-MUFFLER

$34.09

10

138-6036-03

SUPPORT-SEAT

$20.89

11

138-2548

SPRING-COMPRESSION

$8.51

12

138-9820-05

GUARD-ENGINE

$78.99

14

138-9827-01

FOOTREST

$69.29

15

142-5809

AXLE-STUB

$85.99

15:2

109-3678

Bearing-Ball

$15.39

17

138-7200

CAP-GREASE

$5.75

18

117-1232-03

BRACKET-HITCH

$30.79

20

142-5858

DECAL-EXMARK LOGO

$6.11

21

142-5841

DECAL-EXMARK LOGO

$2.98

22

142-5854

DECAL-BYPASS

$1.55

26

138-9753

SCREW

$1.55

27

139-2429

SCREW-HHF

$2.07

28

3234-29

Screw-HH FLG 5/16-18 x 1

$3.24

30

139-2428

SCREW-HWH

$1.55

32

139-2430

NUT-HF, NI

$1.55

33

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

34

142-5846

DECAL-WARNING

$5.75

35

139-3220

TREAD-STEP

$9.23

36

701178

CAP-PROTECTOR

$2.98
