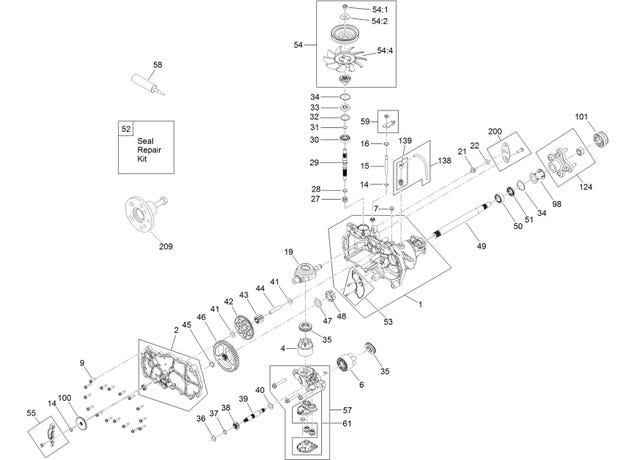

eXmark MN QZS708GEM54200 LH Transaxle Assembly No. 139-7470

1

106-8695

MAIN HOUSING ASM

$894.99

2

106-8696

SIDE ASM

$630.99

4

110-8561

PUMP BLOCK ASM

$322.99

6

103-2666

CYLINDER BLOCK KIT

$459.99

7

104-2189

PLUG-THREAD, STRAIGHT

$26.39

9

117-5359

SCREW-HHF

$3.47

14

106-8677

RING-RETAINING, EXTERNAL

$9.95

15

106-8678

ROD-BYPASS

$57.19

16

106-8679

RING-RETAINING, INTERNAL

$10.79

19

104-5304

SWASHPLATE-TRUNNION

$180.99

21

104-2116

STUD

$39.59

22

112-9853

PUCK-FRICTION

$8.87

27

94-1936

SPRING-BLOCK

$9.35

28

94-1937

WASHER-THRUST

$7.07

29

104-5306

SHAFT-INPUT

$340.99

30

104-5311

BEARING-BALL

$45.09

31

104-5307

RING-RETAINING

$8.63

32

104-5308

SPACER

$9.59

33

104-5310

SEAL-LIP

$36.29

34

104-5309

RING-RETAINING

$13.19

35

94-6922

BEARING-THRUST

$63.79

36

104-5339

WASHER-FLAT

$7.31

37

104-5340

RING-RETAINING

$8.63

38

132-0912

GEAR-12T

product not available CALL FOR AVAILABILITY

$1.00

39

106-8683

SHAFT-MOTOR

$263.99

40

104-5360

WASHER

$8.63

41

94-1933

WASHER

$7.07

42

132-0911

GEAR-49T

$61.59

43

104-5318

GEAR-JACKSHAFT, 10T

$81.99

44

104-5329

PIN-JACKSHAFT

$104.99

45

112-9854

RING-SPIRAL, RETAINING

$5.75

46

112-9855

GEAR-52T, BULL

$147.99

47

112-9856

WASHER

$9.11

48

112-9857

BEARING-SLEEVE

$19.79

49

120-7104

SHAFT-AXLE

$168.99

50

112-9859

BUSHING-AXLE

$15.39

51

112-9860

SEAL-LIP

$20.89

52

106-8686

SEAL KIT

$171.99

53

106-8697

EXPANSION PLATE KIT

$73.69

54

135-7349

FAN AND PULLEY KIT

$83.99

55

106-8688

BRAKE ARM KIT

$38.49

57

112-9861

CENTER SECTION FILTER KIT

$489.99

59

120-5549

BYPASS KIT

$41.79

61

114-1634

FILTER KIT

$42.89

98

120-7109

TUBE-AXLE

$14.29

100

106-8694

DISC-BRAKE, COG

$61.59

101

115-5057

COVER-NUT, AXLE

$18.69

124

109-5939

HUB KIT

$95.99

138

112-9866

BREATHER KIT

$49.49

139

114-1635

BREATHER ASM

$42.89

200

117-5362

CONTROL ARM KIT

$30.79

209

114-8467

PULLER-HUB, 4 BOLT

product not available CALL FOR AVAILABILITY

$0.01
