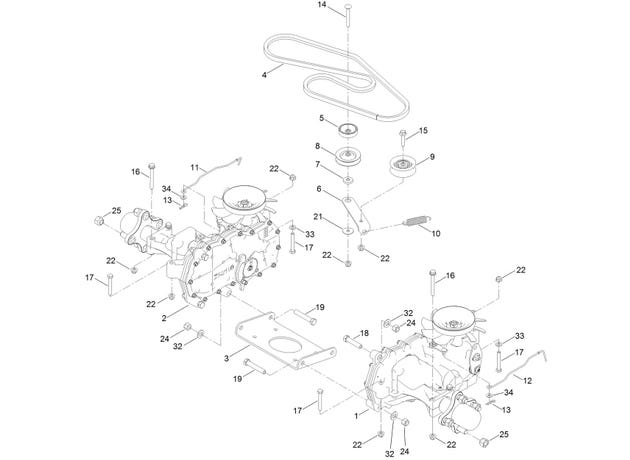

eXmark MN QZE725GKC42200 Traction Drive Assembly

1

139-7450

LH HYDRO TRANSAXLE ASM

$972.99

2

139-7451

RH HYDRO TRANSAXLE ASM

$972.99

3

138-2571-03

CROSSPLATE-HYDRO

$27.49

4

139-2399

V-BELT

$31.89

5

138-9809

SPACER

$7.07

6

138-7276

ARM-IDLER

$7.07

7

138-7277

SPACER-ARM, IDLER

$1.94

8

68-0030-03

IDLER

$18.93

9

138-7597

PULLEY-IDLER, FLAT

$15.39

10

137-7040

SPRING-RETURN, PEDAL

$5.75

11

138-7245

ROD-BYPASS, RH

$9.11

12

138-7243

ROD-BYPASS, LH

$9.11

13

1-806003

PIN-COTTER

$1.81

14

3230-8

SCREW-CARR

$5.27

15

115-1794

Screw-Hex Flange 5/16-18 x 1 1/2

$2.46

16

138-7590

SCREW-HHF

$2.07

17

120-9738

SCREW-HH

$1.81

18

324-8

SCREW-HH

$6.35

19

324-10

Screw-HH 7/16-14 x 2 1/2

$2.20

21

5-4460

WASHER-PIVOT

$8.51

22

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

24

3296-48

NUT-HEX

$0.97

25

242-50

Nut-Lug 1/2-20

$2.11

32

3256-25

WASHER-FLAT

$0.29

33

3256-23

Washer-5/16 SAE

$2.59

34

119-8952

WASHER-SPCL

$0.59
