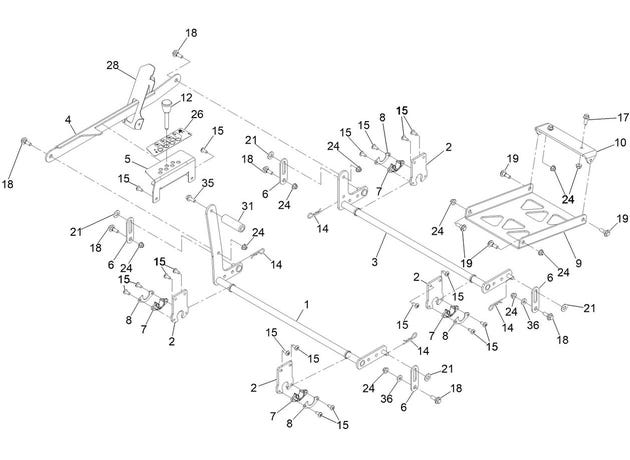

eXmark MN QZS735GKC54200 Deck Lift Assembly

1

138-2503-03

PIVOT FRONT ASM

$79.19

2

138-9804-03

SUPPORT-CROSS, SHAFT

$12.09

3

138-2504-03

REAR PIVOT ASM

$56.09

4

137-5091-03

LINK-HOC

$45.09

5

137-5092-03

BRACKET-HOC

$31.89

6

137-7001-03

LINK-DECKLIFT

$23.09

7

139-5872

BEARING-FLANGE

$2.07

8

138-7204

GUSSET-DECK LIFT

$2.98

9

139-2435-03

PAN-DECK PIVOT

$103.99

10

139-2405-03

MOUNT - PAN

$31.89

12

140-2146

HOC PIN ASM

$17.59

14

1-806005

Hairpin-Cotter

$2.98

15

138-9753

SCREW

$1.55

17

3234-42

Screw HHF 3/8-16 x 1

$3.59

18

137-9847

SCREW-SHOULDER

$1.55

19

109-9840

Screw-Hex Flange 3/8-16 x .80

$5.75

21

3256-26

Washer-1/2 SAE

$0.59

24

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

26

139-5892

DECAL-HOC

$7.07

28

139-5804-03

BRACKET-HOC

$23.09

31

139-7452

PEDAL-FOOT LIFT

$21.99

35

139-2597

SCREW-HHF

$1.55

36

43-0940

SPACER

$5.87
