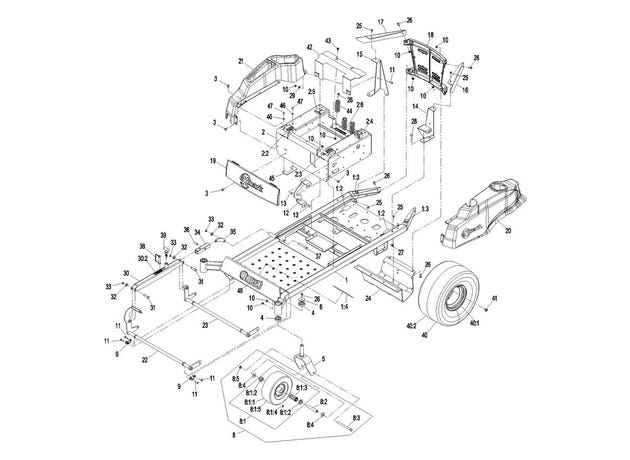

eXmark MN QST24BE522 Frame Group

1

109-8825

FRAME ASM

$1,499.99

1:2

109-6008

DECAL-DRIVE RELEASE

$5.39

1:3

106-5517

DECAL-WARNING

$5.75

1:4

109-8965

DECAL-SAFETY

$16.49

2

109-8845

SEAT BOX ASM

product not available CALL FOR AVAILABILITY

$0.01

2:2

109-9182

DECAL-MOTION CONTROL

$5.39

2:3

109-9173

DECAL-CONTROL BRAKE

$5.75

2:4

109-9120

DECAL-FUSE BLOCK

$5.39

2:5

109-6014

DECAL-ROUTING, BELT

$7.07

2:6

109-6210

DECAL-DANGER

$6.71

3

32144-70

Screw-HWH 5/16-18 x 3/4 TF

$2.98

4

109-3678

Bearing-Ball

$15.39

5

116-0100-01

Wld, Caster Fork

$126.99

6

109-3724

WASHER

$3.47

8

109-6405

CASTER WHEEL ASM

$174.99

8:1

105-1863

WHEEL-CASTER

$82.99

8:1:1

105-1864

TIRE

$80.29

8:1:2

62-5580

BEARING-OUTSIDE

$7.31

8:1:3

83-4740

BEARING

$14.29

8:1:4

302-5

Zerk 1/4-28 Str Thrd Forming

$3.59

8:1:5

93-4244

TUBE-INNER (W/VALVE)

$15.39

8:2

104-3667

BUSHING-SPANNER

$19.79

8:3

325-20

Screw-HH 1/2-13 x 6

$8.51

8:4

92-2651

Washer

$5.27

8:5

3296-45

NUT-HEX

$4.55

9

109-3667

BEARING-FLANGE

$8.51

10

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

11

322-5

Screw-HH 5/16-18 x 1

$0.74

12

109-6045-03

BRACKET-TANK MOUNT

$53.89

13

3230-23

Bolt-Carriage 5/16-18 x 3/4 short neck

$1.25

14

109-6867-01

Bracket, Rear Tank

product not available CALL FOR AVAILABILITY

$0.01

15

109-3406-01

Bracket, RH Rear Console

product not available CALL FOR AVAILABILITY

$0.01

16

109-3381-01

Guard, Engine

$30.79

17

109-3391-01

Guard, Engine

$30.79

18

109-5363-01

Guard, Rear

$72.02

19

109-3709

Panel, Front Exmark

$45.09

20

109-3707

Fender, Exmark (LH)

product not available CALL FOR AVAILABILITY

$0.01

21

109-3708

Fender, Exmark (RH)

product not available CALL FOR AVAILABILITY

$0.01

22

109-8870-01

Wld, Shaft Front

product not available CALL FOR AVAILABILITY

$0.01

23

109-8871-01

Wld, Shaft Rear

$101.99

24

114-1658-03

GUARD-MUFFLER

$151.99

25

9266714

Screw-HWH 1/4-20 x .50

$1.55

26

3234-5

SCREW-HHF

$1.39

27

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

28

3231-9

Bolt-Carriage 3/8-16 x 2 3/4

$2.72

29

3256-3

Washer-5/16 Std

$0.74

30

109-8758

HEIGHT ADJUSTMENT ASM

$164.99

30:2

109-8759

DECAL-CUT HEIGHT

$7.07

31

109-5819

Pin-Clevis

$12.09

32

3256-26

Washer-1/2 SAE

$0.59

33

32120-47

RING-RETAINING, EXTERNAL

$1.55

34

109-8755

STOP-HEIGHT ADJUST

$28.59

35

109-5814

ARM-FLOAT LINK

$15.39

36

109-5818

PIN-PIVOT

$5.75

37

109-6172

Pin-Clevis

$23.09

38

93-4696

PIN-HITCH

$11.99

39

109-6177

PIN-SPRING

$54.99

40

109-5268

4 PLY WHEEL AND TIRE ASM

$274.99

40

109-5486

WHEEL AND TIRE ASM

$239.99

40:1

109-5487

WHEEL

$172.99

40:1

109-5270

WHEEL

$107.99

40:2

109-5488

TIRE

$172.99

40:2

109-5269

TIRE-4 PLY

$193.99

41

242-50

Nut-Lug 1/2-20

$2.11

42

109-6190-03

COVER-HYDRO FAN

$73.69

43

99-6810

Screw-HH 1/4-20 x 5/8

$3.71

44

92-7054

SPRING-COMPRESSION

$21.99

45

109-6214

STOP-MOTION CONTROL

$35.19

46

1-303435

Washer-Spring Disc 1/4

$1.81

47

321-2

Screw-HH 1/4-20 x 1/2

$3.71

48

109-6280

Decal, Quest Logo

$15.39
