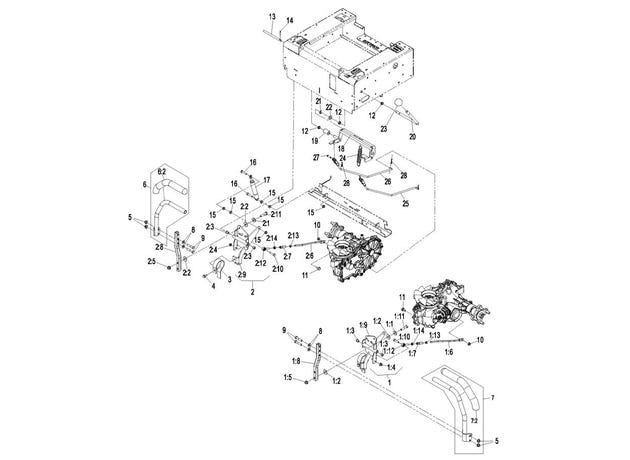

eXmark MN QST24BE522 Motion Control Group

1:9

116-0154

Wld, Motion Control LH

product not available CALL FOR AVAILABILITY

$0.01

2:1

5-0838

Washer

$5.15

2:2

52-2900

WASHER-PLASTIC

$1.55

2:3

103-9928

BEARING

$8.51

2:6

109-3414

ROD-STEERING

$14.29

2:7

109-3728

Nut-Rod Adjustment

$46.19

2:8

116-0150

Tube, Motion Control

$192.99

2:9

116-0153

Wld, Motion Control RH

product not available CALL FOR AVAILABILITY

$0.01

2:10

322-6

Screw-HH 5/16-18 x 1 1/4

$4.55

2:12

2411-53

Balljoint LH

$36.29

2:13

3220-2

Nut-Jam 5/16-24

$1.68

2:14

3220-20

Nut-Jam 5/16-24 LH

$2.59

3

109-5575

SPRING-LEAF

$16.49

4

32144-70

Screw-HWH 5/16-18 x 3/4 TF

$2.98

5

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

6

117-5339

RH CONTROL HANDLE ASM

$76.99

7

117-5338

LH CONTROL HANDLE ASM

$76.99

8

3256-24

Washer-3/8 SAE

$0.83

9

323-9

Screw-HH 3/8-16 x 1 3/4

$1.68

10

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

11

37-8771

Screw-Shoulder 5/16-18 x 5/8

$5.75

12

116-1393

BUSHING

$5.75

13

109-3705

PIN-CONTROL PIVOT

$17.59

14

3272-10

Pin-Cotter 1/8 x 3/4

$1.39

15

32128-20

Nut-Whizlock 5/16-18

$1.39

16

1-403180

Screw-HH 5/16-18 x 1 1/4 Sp

$2.98

17

109-5957

DAMPER-MOTION CONTROL

$78.09

18

116-1177

WLD,BRAKE CENTER ARM

product not available CALL FOR AVAILABILITY

$0.01

19

109-5010

SPACER

$13.19

20

116-1169

Handle, Brake

$32.99

21

32120-47

RING-RETAINING, EXTERNAL

$1.55

22

106-9888

WASHER-FLAT

$0.74

23

233-48

KNOB

$13.19

24

88-6130

SPRING-DECK, ENGAGEMENT

$13.19

25

116-1840

Asm, Brake Linkage LH

product not available CALL FOR AVAILABILITY

$0.01

26

116-1841

Asm, Brake Linkage RH

product not available CALL FOR AVAILABILITY

$0.01

27

1-808280

Pin-Clevis 5/16 x 1 49/64

$2.98

28

1-806003

PIN-COTTER

$1.81



108-6187

GRIP

$25.29
