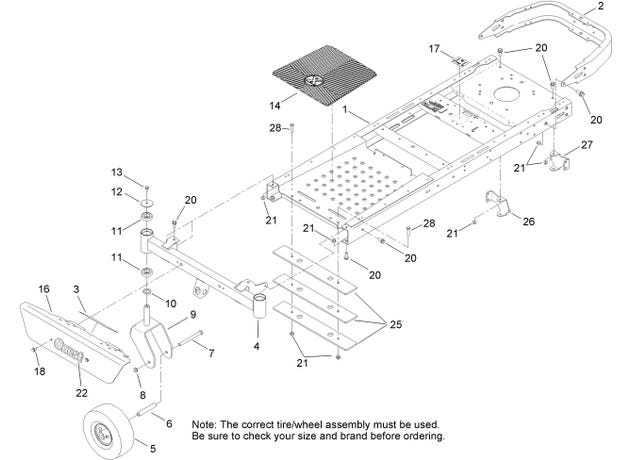

eXmark MN QT22KA421 Main Frame and Front Axle Assembly

1

117-7260-01

FRAME ASM

product not available CALL FOR AVAILABILITY

$0.01

2

110-1920-01

BUMPER-REAR

$115.99

3

120-2239

DECAL-DANGER

product not available CALL FOR AVAILABILITY

$0.01

4

120-5516-01

AXLE-FRONT

$296.99

5

120-5515

CASTER WHEEL ASM (CST)

$84.99

5

110-6785

CASTER WHEEL ASM (Kenda)

$76.99

6

104-3667

BUSHING-SPANNER

$19.79

7

325-22

Screw-HH 1/2-13 x 5 1/2

$9.11

8

3296-45

NUT-HEX

$4.55

9

120-2266-01

FORK-CASTER

$168.99

10

117-7394

WASHER-THRUST

$2.98

11

109-3678

Bearing-Ball

$15.39

12

119-8915

WASHER

$3.23

13

3234-47

Screw-HH FLG 5/16-18 x 3/4

$2.98

14

120-5457

MAT-FLOOR

$84.99

16

117-7332-01

FOOTREST

product not available CALL FOR AVAILABILITY

$0.01

17

120-5465

DECAL-TRANSPORT

$2.85

18

32144-70

Screw-HWH 5/16-18 x 3/4 TF

$2.98

20

3234-42

Screw HHF 3/8-16 x 1

$3.59

21

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

22

116-4218

DECAL

$15.39

25

120-2267-01

PLATE-WEIGHT

$30.79

26

117-7459-01

MOUNT-HYDRO, REAR (RH)

$17.59

27

117-7460-01

MOUNT-HYDRO, REAR (LH)

$16.49

28

323-8

Screw-HH 3/8-16 x 1 1/2

$3.59
