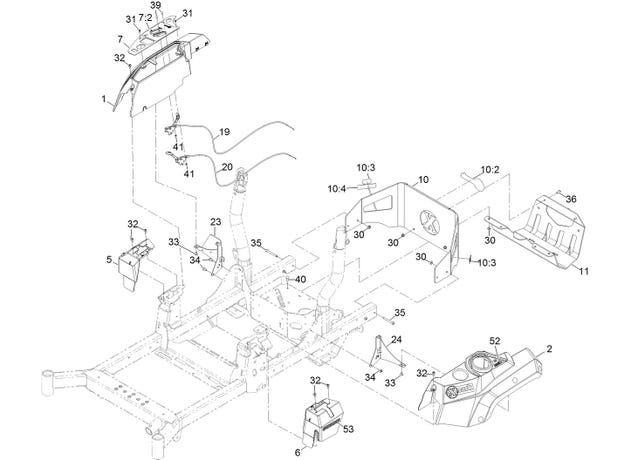

eXmark MN RAE708GEM60300 Controls Assembly

1

126-6025

CONSOLE, RH

$56.09

2

126-6026

CONSOLE, LH

$56.09

5

126-7371

COVER-CONTROL, MOTION (RH)

$26.39

6

126-7372

COVER-CONTROL, MOTION (LH)

$26.39

7

126-7789

CTRL PANEL ASM W/DECAL

$27.49

7:2

126-6570

DECAL-CONTROL PANEL

$9.95

10

126-7802

REAR GUARD ASM

$212.99

10:2

126-6877

DECAL, EXMARK LOGO

$7.79

10:3

106-5517

DECAL-WARNING

$5.75

10:4

117-2718

DECAL-ARRESTER, SPARK

$7.79

11

135-5084-03

GUARD-MUFFLER [BLACK]

$157.99

19

126-6945

CABLE-CONTROL, CHOKE

$36.29

20

126-6944

CABLE-CONTROL, THROTTLE

$36.29

23

126-9945

SUPPORT-CONSOLE, RH

$24.19

24

126-5532-03

BRACKET-CONSOLE, LH

$13.19

30

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

31

117-5036

Screw-HWH #10-14 x 1/2

$5.39

32

120-7950

Screw-1/4-20 x 1/2 TF Torx Plus

$2.98

33

126-5544

Screw-HWH #10-14 x 1/2 Torx

$1.55

34

126-6266

Screw-1/4-20 x .65 Torx Plus

$1.68

35

126-6267

Screw-Truss HD 5/16-18 x 2 3/4 Torx Plus

$3.11

36

126-6268

Screw-Truss HD 5/16-18 x 3/4 Torx Plus

$1.81

39

1-807513

Bolt-Carriage #10-24 x 1/2

$2.98

40

3230-22

Bolt-Carriage 5/16-18 x 1 Sp

$2.59

41

3296-2

Nut-Nyloc #10-24

$2.46

52

126-9939

DECAL-FILL, FUEL

$5.75

53

126-9295

DECAL-E-SERIES

$6.11
