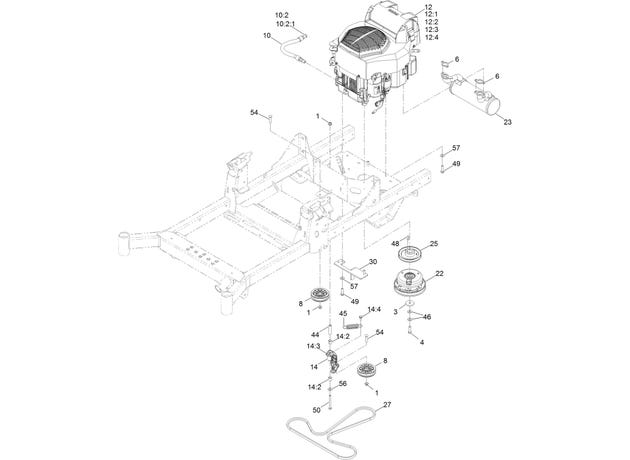

eXmark MN RAE720CKC48300 Engine Assembly

1

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

3

109-6919

WASHER-PLAIN

$5.75

4

109-9761

SCREW-HH

$5.75

6

110-6697

GASKET-EXHAUST

$7.43

8

116-2456

PULLEY-FLAT IDLER

$24.19

10

116-5108

OIL DRAIN HOSE ASM

$39.59

10:2

353-508

PLUG-HH

$8.87

10:2:1

237-42

O-RING

$3.24

14

126-0973

IDLER ARM ASM

$80.99

14:2

1-513034

SLEEVE-BEARING

$8.15

14:3

302-40

Zerk-90° 1/4-28

$3.59

14:4

32144-11

Screw-HWH 5/16-18 x 3/4 TF

$8.51

22

126-4324

CLUTCH

$359.99

23

126-4359

MUFFLER-KOHLER AES

$128.99

25

126-5358

SHEAVE (W/HUB)

$54.99

27

126-5993

BELT-V

$53.89

30

126-6687-03

ANCHOR-CLUTCH

$26.39

44

1-603384

BUSHING-PIVOT, IDLER

$14.29

45

1-603402

SPRING-EXTENSION

$8.87

46

1-603610

Washer-Spring Disc 7/16

$5.75

48

1-807259

KEY

$2.46

49

32144-102

Screw-HWH 3/8-16 X 1 1/2 Taptite

$3.83

50

323-15

Screw-HH 3/8-16 x 3 1/2

$2.20

54

3231-29

SCREW-CARR

$8.39

56

3256-4

Washer-3/8 Std

$1.94

57

98-5975

Washer-Spring Disc 3/8

$3.71
