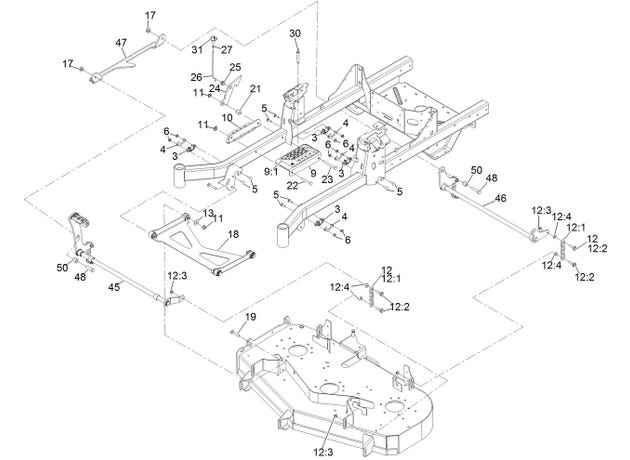

eXmark MN RAE691GKA48C00 Deck Lift Assembly

#
Part #
Item
Price
Qty
Add
3
115-5065
BUSHING-FLANGE
$8.51
4
116-2887
GUSSET-LIFT, DECK
$5.75
5
3230-22
Bolt-Carriage 5/16-18 x 1 Sp
$2.59
6
104-8300
Nut-Nyloc 5/16-18 Flg
$1.25
9
126-4535
BRACKET ASM
$34.09
9:1
126-4784
DECAL-HOC
$9.95
10
126-4640-03
ANGLE-HOC, LOWER
$104.99
11
109-6658
Nut-Nyloc 3/8-16 Flg
$1.55
12
126-8877
DECK CHAIN ASM
$14.29
12:1
1-633447
CHAIN-LIFT, DECK
$11.99
12:2
130-0742
BOLT-SHOULDER
$2.98
12:3
104-8301
Nut-Nyloc 3/8-16 Flg
$1.55
12:4
43-0940
SPACER
$5.87
13
1-373034
Washer
$3.83
17
99-5107
Nut-Lock 1/2-13
$2.20
18
126-8365
DECK STRUT ASM
$129.99
19
3231-7
Bolt-Carriage 3/8-16 x 2 1/4
$7.79
21
126-5221
SPACER-STEPPED
$7.07
22
3231-42
Bolt-Carriage 3/8-16 x 3
$2.98
23
135-0313
SCREW-CARR
$3.11
24
126-5222
PLATE-LOCK, TRANSPORT
$18.69
25
126-5593
GROMMET
$1.68
26
126-5223
ROD-LOCK, TRANSPORT
$5.75
27
3218-1
NUT-JAM
$1.68
30
126-5401
PIN-HOC
$21.99
31
126-7019
KNOB
$11.99
45
135-5083-03
SHAFT-DECKLIFT FRONT
$110.99
46
135-5081-03
SHAFT-DECKLIFT REAR
$84.99
47
135-5079-03
LINK-DECKLIFT
$81.99
48
325-8
Screw-HH 1/2-13 x 1 1/4
$5.99
50
135-5617
SPACER-STEPPED
$7.31
