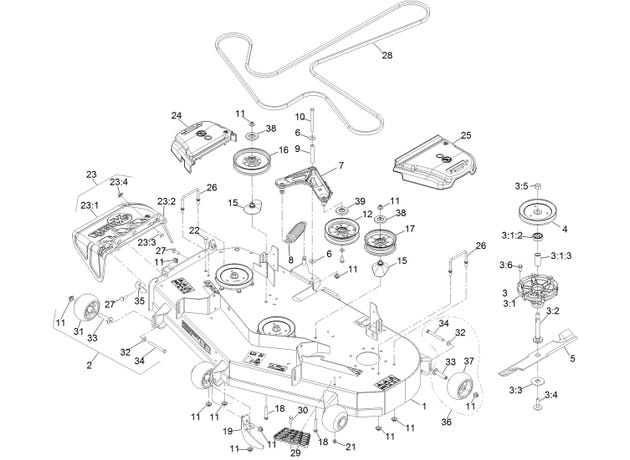

eXmark MN RAS708GEM523C3 Deck Assembly

1

126-3578

ASM-DECK W/DECALS 523

$1,986.99

2

116-9981

KIT, ANTI-SCALP ROLLER

$53.89

3

126-4630

ASM, CUTTER HOUSING COMPLETE

$127.99

3:1

126-4627

ASM-CUTTER HOUSING

$112.99

3:1:2

116-4004

BEARING

$19.79

3:1:3

116-4876

SPACER-BEARING

$8.63

3:2

109-7431

SPINDLE-HEX PILOT

$38.49

3:3

126-4530

WASHER-HEX BLADE DRIVE

$5.99

3:4

116-0005

BOLT-BLADE, SEM

$8.51

3:5

3219-6

Nut-Hex 5/8-18

$4.43

3:6

126-1696

SCREW-HWHTF

$1.55

4

116-5044

SHEAVE,BLADE DRIVE 6.50

$67.09

5

116-5175-S

SPK,BLADE-EXTREME 2, 18.00"

$31.89

5

103-6402-S

SPK, BLADE NOTCHED 18.0 (.94 HOLE)

$31.89

5

103-6392-S

SPK, BLADE MULCH 18.0 (.94 HOLE)

$31.89

5

103-6387-S

SPK, BLADE LOW LIFT 18.0 (.94 HOLE)

$32.99

5

103-6382-S

SPK, BLADE SOLID 18.0 (.94 HOLE)

$37.39

6

52-2860

Washer

$1.25

7

126-0976

IDLER ARM ASM

$100.99

8

116-6317

SPRING-EXTENSION

$28.59

9

116-5111

BUSHING

$34.09

10

323-38

Screw-HH 3/8-16 x 4 3/4

$12.09

12

126-9196

IDLER-PULLEY, FLAT

$62.69

15

109-2872

SPACER-PULLEY

$23.09

16

126-9189

IDLER-PULLEY, FLAT 6.00X1.00

$63.79

17

126-9197

IDLER-PULLEY, FLAT 5.00X1.31

$63.79

18

3231-44

Bolt-Carriage 3/8-16 x 2 1/2

$3.11

19

116-5835-01

BAFFLE-DOGLEG, LZE-PNS-52

$63.79

21

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

23

109-7188

ASM,DISCHARGE CHUTE

$97.99

23:1

109-2738

CHUTE,DISCHARGE

$75.89

23:2

109-8675-01

BRACKET,DISCHARGE CHUTE

$52.79

23:3

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

23:4

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

24

109-6935

COVER-BELT, RH

$39.59

25

109-6936

COVER-BELT, LH

$39.59

26

109-6982

WIREFORM-COVER

$12.09

27

119-4162

SCREW-CARR

$2.07

28

126-7443-SL

BELT-V WITH SLEEVE

$164.99

29

126-4781-03

STEP-DECK

$26.39

30

3230-3

Bolt-Carriage 5/16-18 x 1 1/4

$1.68

31

103-8415

ROLLER-ANTI-SCALP

$24.19

32

98-5975

Washer-Spring Disc 3/8

$3.71

33

116-8131

AXLE, ROLLER

$13.19

34

116-9362

Screw-HH 3/8-16 x 3 3/4 GR 8

$3.11

35

135-0064

STOP-DISCHARGE CHUTE

$9.59

36

126-7840

KIT-ANTISCALP ROLLER

$50.59

37

1-603299

ROLLER-SCALP, ANTI

$23.09

38

126-8043

SHIELD-DUST

$2.98

39

126-9195

SHIELD-GUARD, DUST

$3.11
