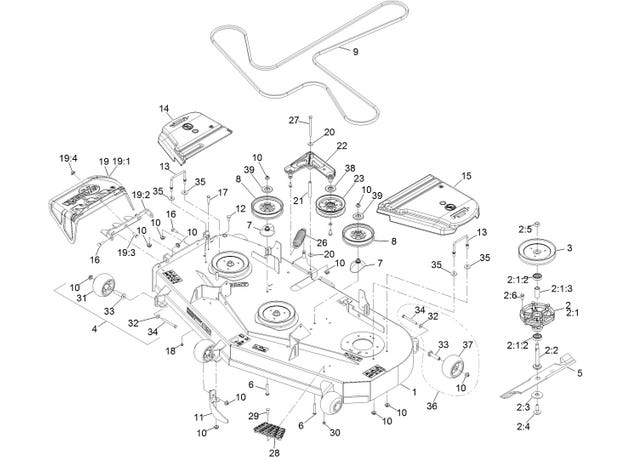

eXmark MN RAS708GEM603C3 Deck Assembly

1

126-3581

ASM-DECK W/DECALS 603

$2,348.99

2

126-4630

ASM, CUTTER HOUSING COMPLETE

$127.99

2:1

126-4627

ASM-CUTTER HOUSING

$112.99

2:1:2

116-4004

BEARING

$19.79

2:1:3

116-4876

SPACER-BEARING

$8.63

2:2

109-7431

SPINDLE-HEX PILOT

$38.49

2:3

126-4530

WASHER-HEX BLADE DRIVE

$5.99

2:4

116-0005

BOLT-BLADE, SEM

$8.51

2:5

3219-6

Nut-Hex 5/8-18

$4.43

2:6

126-1696

SCREW-HWHTF

$1.55

3

126-5007

SHEAVE,BLADE DRIVE 7.25

$80.29

4

116-9981

KIT, ANTI-SCALP ROLLER

$53.89

5

103-6383-S

SPK, BLADE SOLID 20.5 (.94 HOLE)

$35.19

5

103-6388-S

SPK, BLADE LOW LIFT 20.5 (.94 HOLE)

$38.49

5

103-6393-S

SPK, BLADE MULCH 20.5 (.94 HOLE)

$31.89

5

116-5174

BLADE-EXTREME 2, 20.50"

product not available CALL FOR AVAILABILITY

$1.00

5

103-6403-S

SPK, BLADE NOTCHED 20.5 (.94 HOLE)

$32.99

6

3231-44

Bolt-Carriage 3/8-16 x 2 1/2

$3.11

7

109-2872

SPACER-PULLEY

$23.09

8

126-9189

IDLER-PULLEY, FLAT 6.00X1.00

$63.79

9

126-6627-SL

BELT-V WITH SLEEVE

$174.99

11

126-4708-01

DOGLEG-603

$59.39

13

109-6982

WIREFORM-COVER

$12.09

14

116-0094

COVER-BELT, RH

$80.99

15

109-6938

COVER-BELT, LH

$89.99

16

119-4162

SCREW-CARR

$2.07

17

611792

BOLT-SHOULDER

$27.49

18

104-7201

Nut-Nyloc 1/4-20 Flg

$1.68

19

109-7188

ASM,DISCHARGE CHUTE

$97.99

19:1

109-2738

CHUTE,DISCHARGE

$75.89

19:2

109-8675-01

BRACKET,DISCHARGE CHUTE

$52.79

19:3

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

19:4

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

20

52-2860

Washer

$1.25

21

116-5111

BUSHING

$34.09

22

126-0976

IDLER ARM ASM

$100.99

23

126-9196

IDLER-PULLEY, FLAT

$62.69

26

116-6317

SPRING-EXTENSION

$28.59

27

323-38

Screw-HH 3/8-16 x 4 3/4

$12.09

28

126-4781-03

STEP-DECK

$26.39

29

3230-3

Bolt-Carriage 5/16-18 x 1 1/4

$1.68

30

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

31

103-8415

ROLLER-ANTI-SCALP

$24.19

32

98-5975

Washer-Spring Disc 3/8

$3.71

33

116-8131

AXLE, ROLLER

$13.19

34

116-9362

Screw-HH 3/8-16 x 3 3/4 GR 8

$3.11

35

1-373034

Washer

$3.83

36

126-7840

KIT-ANTISCALP ROLLER

$50.59

37

1-603299

ROLLER-SCALP, ANTI

$23.09

38

126-9195

SHIELD-GUARD, DUST

$3.11

39

126-8043

SHIELD-DUST

$2.98
