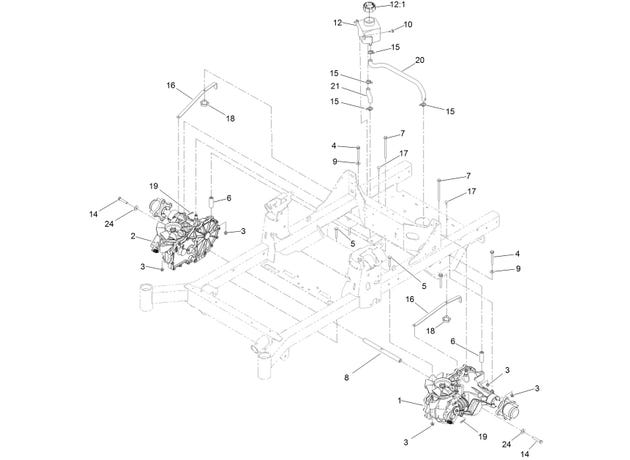

eXmark MN RAS708GEM603C3 Hydraulic Drive Assembly

1

135-0140

LH TRANSAXLE ASM

$1,460.99

2

135-0139

RH TRANSAXLE ASM

$1,460.99

3

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

4

126-4687

SCREW-HHF

$1.94

5

3230-7

Bolt-Carriage 5/16-18 x 2 1/4

$0.83

6

116-5809

SPACER-HYDRO

$6.71

7

126-5896

SCREW HHF

$2.98

8

116-6833

SHAFT-SPACER

$38.49

9

1-303334

Washer-Spring Disc 5/16

$2.98

10

126-6266

Screw-1/4-20 x .65 Torx Plus

$1.68

12

109-2250

TANK-HYD

$67.09

12:1

109-3320

CAP-RESERVOIR, HYD

$28.59

14

94-7972

SCREW-HH W/LOCTITE

$5.75

15

126-0327

Clamp-Hose

$1.55

16

109-5395

ARM-BYPASS, HYDRO

$9.95

17

3229-1

Bolt-Carriage 1/4-20 x 3/4

$4.07

18

108-6402

KNOB-HANDLE

$1.81

19

1-806003

PIN-COTTER

$1.81

20

133-1325

HOSE-HYDRAULIC

$17.59

21

133-1320

HOSE-HYDRAULIC

$7.07

24

3256-4

Washer-3/8 Std

$1.94
