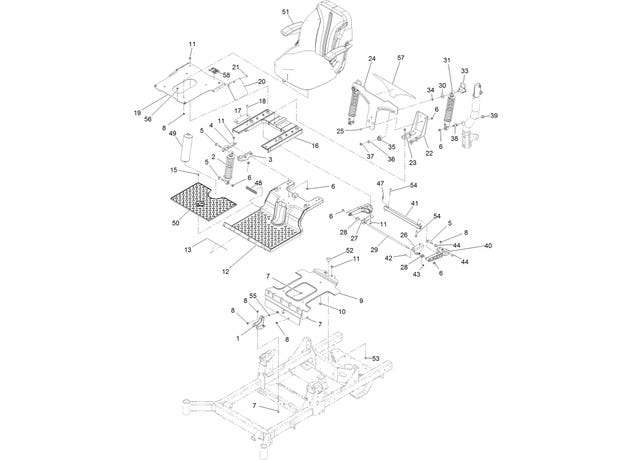

eXmark MN RAS708GEM603C3 Suspension Assembly

1

133-1864-03

BRACKET-SHOCK, FRONT LOWER

$20.89

2

136-8971

SHOCK/SPRING

$121.99

3

133-9318-03

BRACKET-SHOCK MOUNT, UPPER (LH)

$15.39

4

133-9319-03

BRACKET-SHOCK MOUNT, UPPER (RH)

$15.39

5

136-9028

BOLT-SHOULDER, HWH

$2.07

6

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

7

3230-23

Bolt-Carriage 5/16-18 x 3/4 short neck

$1.25

8

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

9

136-8963-03

BRACKET-TANK

$122.99

10

135-0505

BUMPER-SEAT

$1.55

11

32144-70

Screw-HWH 5/16-18 x 3/4 TF

$2.98

12

133-7083-01

SUBFRAME-FRONT

$190.79

13

132-0871

DECAL-DANGER

$8.51

15

117-2382

PLUG-PLASTIC

$0.83

16

137-7031-01

SUBFRAME-REAR

$80.29

17

133-7089-03

PLATE-BACKER

$8.63

18

323-6

Screw-HH 3/8-16 x 1

$2.98

19

136-8962-03

PLATE-SEAT

$77.99

20

136-8967

FLAP-RUBBER

$8.75

21

132-5064

RIVET-POP

$1.55

22

136-8955-03

BRACKET-MOUNT, LOWER

$61.59

23

32144-109

Screw-HWH 3/8-16 x 1 1/4 Taptite

$5.39

24

136-1744-03

PLATE-MOUNTING, ADJ SHOCK

$81.99

25

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

26

136-1741-03

BRACKET-ARM, TRAILING (LH)

$14.29

27

136-1742-03

BRACKET-ARM, TRAILING (RH)

$14.29

28

127-0146

BEARING-FLANGE

$8.87

29

136-1739

ROD-PIVOT

$31.89

30

131-4699

WASHER-PLASTIC

$5.75

31

133-5193

SHOCK/SPRING ASM

$119.99

33

136-9017

CAM LOCK ASM

$35.19

34

133-5109

BEARING-SLEEVE

$2.98

35

136-5636

KNOB-LOCK, CAM

$13.19

36

3-6803

WASHER-ADJUSTING

$9.23

37

3296-45

NUT-HEX

$4.55

38

133-4401

BOLT-SHOULDER

$14.29

39

99-5107

Nut-Lock 1/2-13

$2.20

40

136-8979

TRAILING ARM

$31.89

41

137-9754-03

TUBE-ARM, TRAILING

$126.99

42

3229-20

SCREW-CARR

$2.07

43

120-4578

NUT-HF

$0.74

44

125-5239

BUSHING-FLANGE

$8.87

47

105-1853

CLAMP-HOSE

$5.75

48

136-8966

DECAL-RADIUS LOGO

$6.11

49

136-8972

COVER-SHOCK

$13.19

50

136-8957

FLOOR MAT

$75.89

51

135-3442

ASM-SEAT EXMARK

$1,140.99

52

131-8834

BUMPER

$12.09

53

104-7201

Nut-Nyloc 1/4-20 Flg

$1.68

54

3230-6

Bolt-Carriage 3/16-18 x 2

$1.39

55

117-2749

NUT-PUSH

$1.55

56

135-2015

SCREW-SHOULDER

$3.71

57

136-8952

DECAL-ADJUSTMENT, RIDE

$19.79

58

136-9024

DECAL-AID, SERVICE

$5.75
