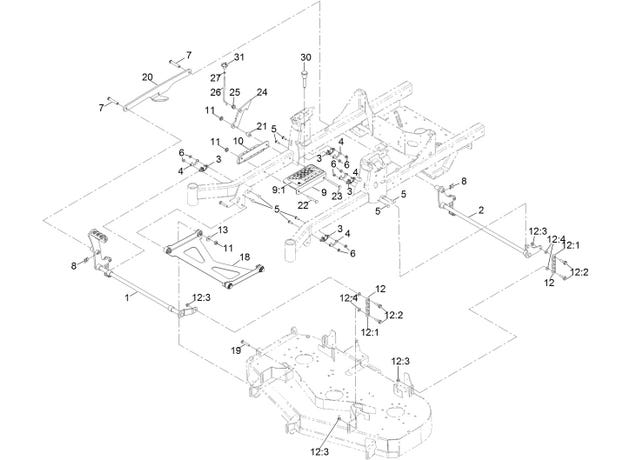

eXmark MN RAX691GKA524A3 Deck Lift Assembly

1

126-3342-03

SHAFT-LIFT, DECK

$99.99

2

126-3343-03

SHAFT-LIFT, DECK (REAR)

$80.99

3

115-5065

BUSHING-FLANGE

$8.51

4

116-2887

GUSSET-LIFT, DECK

$5.75

5

3230-22

Bolt-Carriage 5/16-18 x 1 Sp

$2.59

6

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

7

126-9181

PIN-CLEVIS

$9.11

8

138-8491

CLIP-PIN

$7.07

9

126-4535

BRACKET ASM

$34.09

9:1

126-4784

DECAL-HOC

$9.95

10

126-4640-03

ANGLE-HOC, LOWER

$104.99

11

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

12

126-8877

DECK CHAIN ASM

$14.29

12:1

1-633447

CHAIN-LIFT, DECK

$11.99

12:2

130-0742

BOLT-SHOULDER

$2.98

12:3

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

12:4

43-0940

SPACER

$5.87

13

1-373034

Washer

$3.83

18

126-8365

DECK STRUT ASM

$129.99

19

3231-7

Bolt-Carriage 3/8-16 x 2 1/4

$7.79

20

126-4639-03

LINK-HOC

$63.79

21

126-5221

SPACER-STEPPED

$7.07

22

3231-42

Bolt-Carriage 3/8-16 x 3

$2.98

23

3231-37

Bolt-Carriage 3/8-16 x 4

$5.27

24

126-5222

PLATE-LOCK, TRANSPORT

$18.69

25

126-5593

GROMMET

$1.68

26

126-5223

ROD-LOCK, TRANSPORT

$5.75

27

3218-1

NUT-JAM

$1.68

30

126-5401

PIN-HOC

$21.99

31

126-7019

KNOB

$11.99
