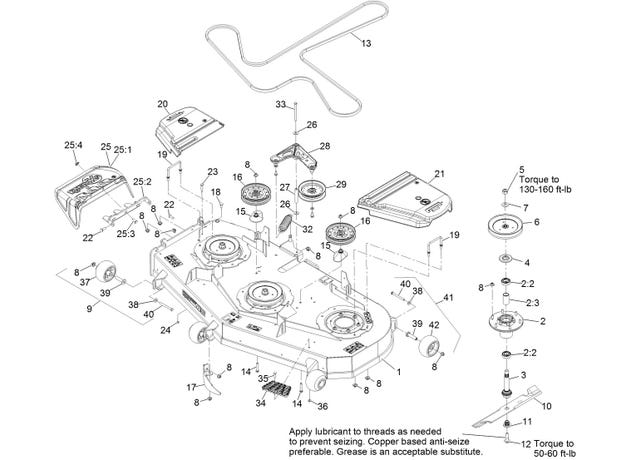

eXmark MN RAX730GKA604A3 Deck Assembly

1

126-3590

ASM-DECK W/DECALS 604

$2,348.99

2

116-3344

ASM-CUTTER HSG WITH BEARINGS

$146.99

2:2

116-0720

BEARING-BALL

$23.09

2:3

116-3312

SPACER-BEARING

$9.59

3

116-3341

ASM-SPINDLE AND SEAL

$77.99

4

116-1286

GUARD,BEARING TOP .989

$5.99

5

116-7306

NUT-HEX

$3.11

6

116-0676

SHEAVE,BLADE DRIVE 7.25

$71.49

7

103-2802

Washer-Spring Disc 3/4

$5.75

9

116-9981

KIT, ANTI-SCALP ROLLER

$53.89

10

103-6403-S

SPK, BLADE NOTCHED 20.5 (.94 HOLE)

$32.99

10

116-5174

BLADE-EXTREME 2, 20.50"

product not available CALL FOR AVAILABILITY

$1.00

10

103-6393-S

SPK, BLADE MULCH 20.5 (.94 HOLE)

$31.89

10

103-6388-S

SPK, BLADE LOW LIFT 20.5 (.94 HOLE)

$38.49

10

103-6383-S

SPK, BLADE SOLID 20.5 (.94 HOLE)

$35.19

11

103-3037

BUSHING,SPLINED

$23.09

12

109-9220

Screw-SEMS 1/2-20 x 2.19

$9.11

13

126-6627-SL

BELT-V WITH SLEEVE

$174.99

14

3231-40

Bolt-Carriage 3/8-16 x 2 1/4

$2.98

15

109-2872

SPACER-PULLEY

$23.09

16

126-9189

IDLER-PULLEY, FLAT 6.00X1.00

$63.79

17

116-5614-01

DOGLEG - LZ60

$60.49

19

109-6982

WIREFORM-COVER

$12.09

20

116-0094

COVER-BELT, RH

$80.99

21

109-6938

COVER-BELT, LH

$89.99

22

119-4162

SCREW-CARR

$2.07

23

611792

BOLT-SHOULDER

$27.49

24

104-7201

Nut-Nyloc 1/4-20 Flg

$1.68

25

109-7188

ASM,DISCHARGE CHUTE

$97.99

25:1

109-2738

CHUTE,DISCHARGE

$75.89

25:2

109-8675-01

BRACKET,DISCHARGE CHUTE

$52.79

25:3

3231-22

Bolt-Carriage 3/8-16 x 1

$3.71

25:4

109-6658

Nut-Nyloc 3/8-16 Flg

$1.55

26

52-2860

Washer

$1.25

27

116-5111

BUSHING

$34.09

28

126-0976

IDLER ARM ASM

$100.99

29

126-9196

IDLER-PULLEY, FLAT

$62.69

32

116-6317

SPRING-EXTENSION

$28.59

33

323-38

Screw-HH 3/8-16 x 4 3/4

$12.09

34

126-4781-03

STEP-DECK

$26.39

35

3230-3

Bolt-Carriage 5/16-18 x 1 1/4

$1.68

36

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

37

103-8415

ROLLER-ANTI-SCALP

$24.19

38

98-5975

Washer-Spring Disc 3/8

$3.71

39

116-8131

AXLE, ROLLER

$13.19

40

116-9362

Screw-HH 3/8-16 x 3 3/4 GR 8

$3.11

41

126-7840

KIT-ANTISCALP ROLLER

$50.59

42

1-603299

ROLLER-SCALP, ANTI

$23.09
