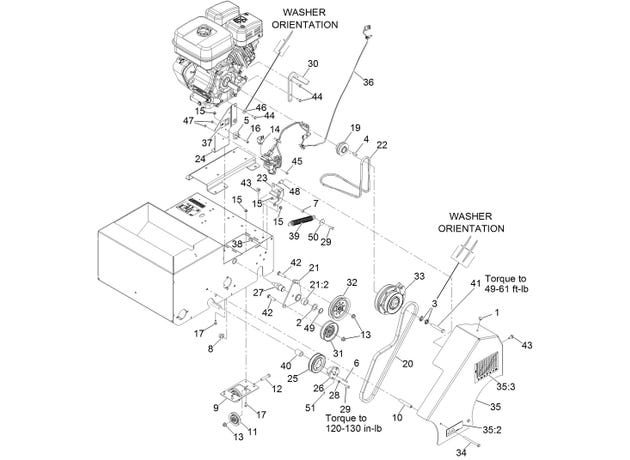

eXmark MN SD270SB20 Belt Drive Assembly

1

1-513658

BUMPER

$7.07

2

1-543436

WASHER-SPACER

$1.55

3

1-603610

Washer-Spring Disc 7/16

$5.75

4

1-807259

KEY

$2.46

5

37-7600

RECTIFIER-BRIDGE

$25.29

6

92-0049

Key-Machine 3/16 x 3/16 x 1 1/4

$3.47

7

98-4799

Spacer

$8.03

8

99-5107

Nut-Lock 1/2-13

$2.20

9

121-1967-03

PULLEY-TENSION

$47.29

10

104-0502

SPACER-KICKSTAND, LONG

$17.59

11

121-1965

PULLEY-IDLER

$42.89

12

323-10

Screw-HH 3/8-16 x 2

$0.97

13

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

14

105-4145

RELAY

$50.59

15

104-7201

Nut-Nyloc 1/4-20 Flg

$1.68

16

106-9169

SCREW-HWH

$8.75

17

3229-1

Bolt-Carriage 1/4-20 x 3/4

$4.07

19

116-9471

PULLEY-MULE DRIVE

$73.69

20

116-9518-SL

BELT-SEEDER, CLUTCH WITH SLEEVE

$49.49

21

116-9519

IDLER ARM ASM

$71.49

21:2

116-9538

BUSHING

$16.49

22

116-9532-SL

BELT-MULE DRIVE WITH SLEEVE

$25.29

23

116-9533-01

BRACKET-SPRING

$15.39

24

116-9534-01

SUPPORT-ENGINE

$28.59

25

121-2019

SHEAVE-TAPER LOCK

$88.99

26

121-2022

BUSHING-TAPER LOCK

$35.19

27

116-9539

PIVOT-IDLER

$25.29

28

3253-3

Washer-Lock 1/4

$0.14

29

321-6

Screw-HH 1/4-20 x 1

$0.74

30

116-9551

STOP-CLUTCH

$20.89

31

116-9623

PULLEY-IDLER V

$36.29

32

116-9728

PULLEY-IDLER FLAT (4.06-INCH)

$42.89

33

116-9852

CLUTCH-ELECTRIC

$593.99

34

322-19

Screw-HH 5/16-18 x 4

$7.19

35

135-7597

GUARD-BELT, W/DECALS

$159.99

35:2

93-7321

DECAL-DANGER

$24.19

35:3

116-8537

DECAL-GRAPH, SEED

$15.39

36

116-9926

HARNESS-SLICER/SEEDER

$106.99

37

116-9985

DECAL-BRIDGE RECTIFIER

product not available CALL FOR AVAILABILITY

$0.00

38

321-3

Screw-HH 1/4-20 x 5/8

$1.55

39

126-0091

SPRING-EXTENSION

$15.39

40

126-0108

SPACER

$9.59

41

3212-12

Screw-HH 7/16-20 x 3

$3.47

42

3231-29

SCREW-CARR

$8.39

43

3234-47

Screw-HH FLG 5/16-18 x 3/4

$2.98

44

3235-6

Screw-HH 5/16-24 x 3/4

$5.03

45

3290-321

SCREW-HWH

$4.79

46

3290-456

Washer-Spring Disc

$3.11

47

32128-17

Nut-Flange #10-24 Top Lock

$0.44

48

32148-7

NUT-CLINCH

$4.43

49

32151-29

Ring-Retaining

$5.75

50

103995

WASHER

$9.59

51

126-0284

SCREW-SET, HS

$25.29
