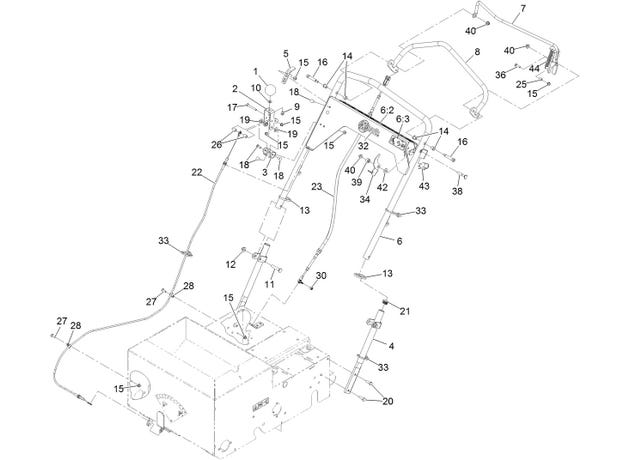

eXmark MN SD270SB20 Handle Assembly

1

121-1877

KNOB-RATE, FLOW

$9.59

2

121-1878

LEVER-ADJUST, FLOW

$26.39

3

121-1879

BRACKET-ADJUST, FLOW

$17.59

4

121-1893-03

HANDLE-LOWER

$64.89

5

121-1928

BRACKET-ADJUST, DRIVE

$15.39

6

116-9735

HANDLE

$181.99

6:2

116-8648

DECAL-CONTROL PANEL, SEEDER

$11.99

6:3

116-8536

DECAL-SAFETY LATCH

$2.98

7

116-9738-03

BAIL

$73.69

8

121-1948-03

HANDLE-DRIVE

$88.99

9

3229-10

Bolt-Carriage 1/4-20 x 1/2

$1.55

10

3256-22

Washer-1/4 SAE

$0.59

11

3231-6

Bolt-Carriage 3/8-16 x 2

$3.23

12

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

13

121-6202

RING-HANDLE LOCK

$8.75

14

103-9928

BEARING

$8.51

15

104-7201

Nut-Nyloc 1/4-20 Flg

$1.68

16

126-0277

SCREW-SHOULDER

$5.75

17

321-11

SCREW-HH

$1.11

18

3229-1

Bolt-Carriage 1/4-20 x 3/4

$4.07

19

48-9220

WASHER-FLAT

$0.44

20

322-5

Screw-HH 5/16-18 x 1

$0.74

21

121-4870

PLUG

$3.24

22

126-0042

CABLE-FLOW, SEED

$42.89

23

116-8252

CABLE-PUSH PULL

$126.99

25

66-8010

SPACER

$5.03

26

22-7810

SPACER

$8.03

27

321-3

Screw-HH 1/4-20 x 5/8

$1.55

28

2412-149

CLAMP-R

$3.95

30

3296-3

Nut-Nyloc 1/4-28

$5.27

32

103-2883

DECAL

$9.59

33

3290-378

Tie-Cable

$1.11

34

126-0205

LATCH-BAIL

$12.09

36

3229-2

Bolt-Carriage 1/4-20 x 1

$3.47

38

92-2260

SCREW-HANDLE

$4.43

39

116-2690

BUSHING-STEPPED

$14.29

40

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

42

88-7200

WASHER-FLAT

$3.59

43

82-2190

Switch

$15.39

44

95-3805

SPRING

$15.39
