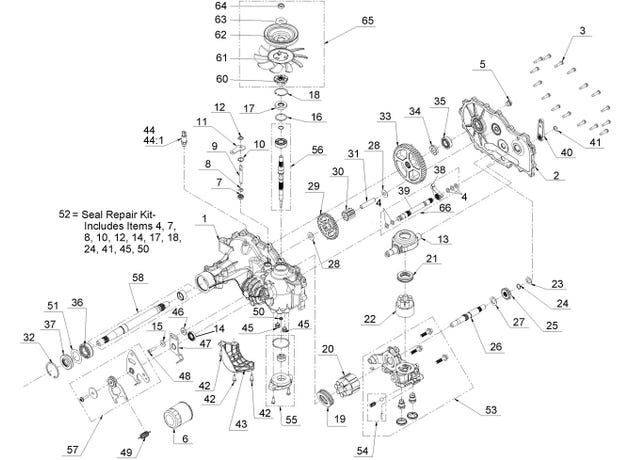

eXmark MN ARX541CKA30000 RH Transaxle Assembly

1

114-1676

MAIN HOUSING KIT

$484.99

2

117-5358

RH HOUSING SIDE KIT

$161.99

3

117-5359

SCREW-HHF

$3.47

4

114-1678

O-RING

$5.75

5

135-1140

PLUG-STRAIGHT

product not available CALL FOR AVAILABILITY

$0.01

6

109-3321

Filter-Hydraulic

$28.59

7

106-8676

SEAL-LIP

product not available CALL FOR AVAILABILITY

$0.01

8

106-8677

RING-RETAINING, EXTERNAL

$9.95

9

114-1685

ROD-BYPASS

$36.29

10

106-8679

RING-RETAINING, INTERNAL

$10.79

11

106-8680

Arm-Bypass

$19.79

12

106-8681

RING-RETAINING, EXTERNAL

$9.95

13

104-5304

SWASHPLATE-TRUNNION

$180.99

14

104-5313

SEAL-LIP

$24.19

15

114-8491

WASHER

$5.75

16

104-5308

SPACER

$9.59

17

104-5310

SEAL-LIP

$36.29

18

104-5309

RING-RETAINING

$13.19

19

109-2865

BEARING-THRUST

product not available CALL FOR AVAILABILITY

$0.01

20

114-1689

MOTOR CYLINDER BLOCK KIT

product not available CALL FOR AVAILABILITY

$0.01

21

94-6922

BEARING-THRUST

$63.79

22

110-8561

PUMP BLOCK ASM

$322.99

23

104-5339

WASHER-FLAT

$7.31

24

104-5340

RING-RETAINING

$8.63

25

126-0788

GEAR-16T

$85.99

26

114-1691

SHAFT-MOTOR

$156.99

27

104-5360

WASHER

$8.63

28

94-1933

WASHER

$7.07

29

125-0000

GEAR-43T

$63.79

30

120-7974

GEAR-11T

$76.99

31

104-5329

PIN-JACKSHAFT

$104.99

32

104-2169

RING-RETAINING

$19.79

33

114-1694

GEAR-54T

$128.99

34

120-7975

SPACER

$7.07

35

135-1361

BEARING-BALL

$39.59

36

120-7976

BEARING-BALL

product not available CALL FOR AVAILABILITY

$0.01

37

104-2144

SEAL

$49.49

38

114-1697

PAWL-BRAKE

$17.59

39

114-1698

SHAFT-BRAKE, INBOARD

$128.99

40

125-0021

HANDLE-BRAKE

$15.39

41

131-0906

RING-RETAINING, EXT

$7.07

42

104-2120

SCREW

$8.75

43

120-7981

GUARD-FILTER, RH

$35.19

44

109-3278

Adapter-Straight

$115.99

44:1

237-42

O-RING

$3.24

45

126-3251

TUBE-CHARGE

product not available CALL FOR AVAILABILITY

$0.01

46

114-8458

SPACER

$40.69

47

114-8459

ARM-NEUTRAL, RIGHT

$37.39

48

106-8682

Screw-Sh

$9.95

49

115-8307

SPRING-EXTENSION

$23.09

50

131-0908

SEAL-GEROTOR

product not available CALL FOR AVAILABILITY

$0.01

51

121-5745

SPACER

$11.99

52

109-3537

SEAL KIT

$102.21

53

120-7982

RH CENTER SECTION CHARGE KIT

$472.99

54

114-8464

CHARGE RELIEF KIT

$21.99

55

114-8465

CHARGE KIT

$102.99

56

117-5361

INPUT SHAFT KIT

$175.99

57

126-2291

CONTROL ARM KIT

$166.99

58

114-8470

AXLE SHAFT KIT

$244.99

60

116-9705

HUB-PULLEY

$8.51

61

116-9706

FAN

$25.29

62

116-9707

PULLEY

$28.59

63

116-9708

WASHER-SLOTTED

$5.75

64

116-9714

NUT-HJ

$5.75
