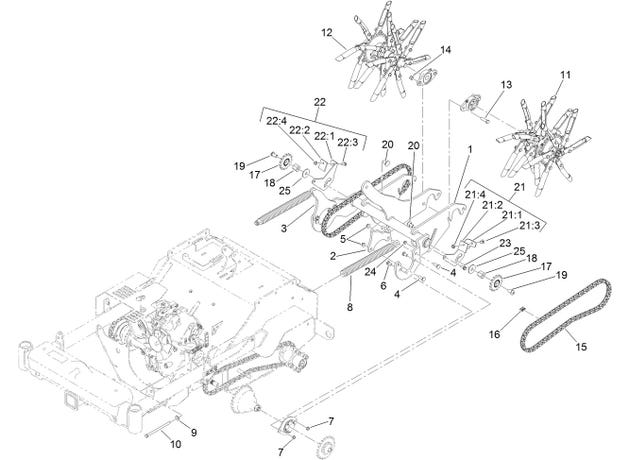

eXmark MN ARX440GKC24000 Tine Assembly

1

135-0810-03

LIFT-TINE

$376.99

2

135-1060-03

ARM-SPRING, LH

$30.79

3

135-1061-03

ARM-SPRING, RH

$30.79

4

119-4162

SCREW-CARR

$2.07

5

104-8301

Nut-Nyloc 3/8-16 Flg

$1.55

6

3231-12

BOLT-CARR

$7.07

7

121-4600

NUT-HEX

$1.25

8

116-0000

SPRING-EXTENSION

$126.99

9

98-5975

Washer-Spring Disc 3/8

$3.71

10

323-58

Bolt-HH 3/8-16 x 6 Tap

$5.99

11

126-9550

LH TINE WHEEL ASM

$554.99

12

126-9551

RH TINE WHEEL ASM

$554.99

13

1-800811

SCREW-CAP, HH

$12.09

14

3296-76

NUT-LOCK, NI

$5.27

15

135-1100

CHAIN-ROLLER

$197.99

16

116-6897

LINK-CONNECTING

$8.51

17

126-9108

SPROCKET-IDLER, 15T

$95.99

18

135-2242

SPACER

$14.29

19

99-8446

SCREW- PAN SOCKET HEAD

$13.19

20

3233-9

SCREW-CARR

$3.71

21

135-2405

LH DEBRIS DEFLECTOR ASM

$31.89

21:1

135-2325

BRACKET-DEFLECTOR, DEBRIS (LH)

$26.39

22

135-2404

RH DEBRIS DEFLECTOR ASM

$31.89

22:1

135-2406

BRACKET-DEFLECTOR, DEBRIS (RH)

$26.39

22:2

135-2403

DEFLECTOR-DEBRIS

$1.81

22:3

3230-10

Bolt-Carriage 5/16-18 x 7/8

$4.19

23

27-0410

Screw-Shoulder 5/16-18 x 1 Sp

$3.11

24

104-8300

Nut-Nyloc 5/16-18 Flg

$1.25

25

120-3856

WASHER-FLAT

$2.98
